Item#: APM-16 Browsing History
BIRD TECHNOLOGIES »

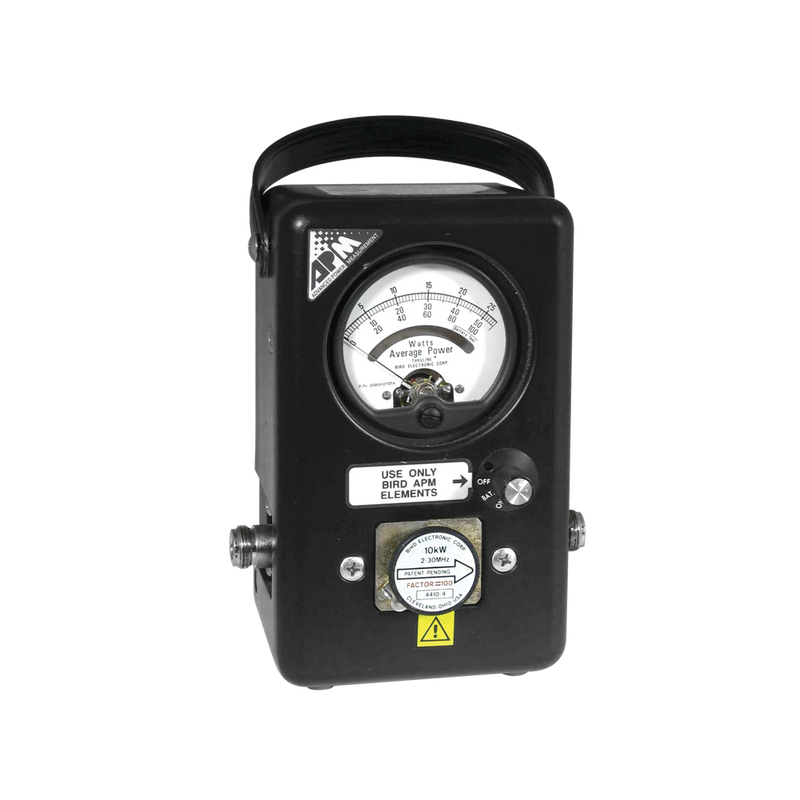

Wattmeter Average Reading Power Meter for Digital Communications, Use Serial APM Elements (Not Included).
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All BIRD TECHNOLOGIES Products

Wattmeter Average Reading Power Meter for Digital Communications, Use Serial APM Elements (Not Included).

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: BIRD TECHNOLOGIES
  • Hardware Model / MPN: APM-16
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Networking & Telecom Infrastructure
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
$2,605.50
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units $2,605.50 Standard
5 - 9 units $2,475.23 Save 5%
10+ units $2,344.95 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$2,605.50
Standard Catalog
5 – 9 Units
$2,449.17
Save ~6%
10+ Units
$2,292.84
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing


Wattmeter Average Reading Power Meter for Digital Communications.


APM-16, Average Reading Power Meter is designed to keep pace with the ever growing complexity of digitally-based communication systems. Bird's model 43 and most other wattmeters available today were designed to measure power of constant amplitude, sinusoidal waveforms.

Modern wireless communication systems can use a variety of digital techniques to combine many voice data channels into a complex, composite RF signal. Measurement of such signals with a conventional wattmeter may yield unacceptable errors. The APM-16 employs active circuitry to deliver accuracy of ± 5% for multiple-access technologies such as CDMA, TDMA, FDMA and other digitally-encoded communication systems.

  • Designed especially for RF power measurement in PCS, cellular, ESMR, paging and similar communication systems
  • Equally effective for measuring RF power in conventional analog systems
  • Uses APM-series plug-in elements (Not Included) to cover a wide range of frequency and power levels. Simple Thruline® style operation for instant forward or reflected power readings
  • Interchangeable QC connectors for fast hook-up.
Item No
APM-16
Item Name
Average Reading Power Meter
Power Range
1 W - 1000 W
Frequency Range
2 MHz - 2.3 GHz
Insertion VSWR
with N Connector 1.05 max. to 1000 MHz
Accuracy
10°C to 35°C ± 4% reading, ± 1% full scale
-20°C to 50°C ± 6% reading, ± 2% full scale
Peak to Average Ratio
In excess of 10 dB
Setting Time
< 1 second
Connectors
QC Type (Female N normally supplied)
Humidity
95% ± 5% max. (noncondensing)
Battery
Internal 9 volt
Operating Temperature
-20 to 50°C
Storage Temperature
-25 to 65°C (-13 to 149°F)
Meter Scales
Shock mounted, linear scale with expanded scales of 25, 50 and 100 for full scale 1 to 1000 W readings. Mirrored scale includes 5% overrange.
Dimensions
(H x W x D)
6-7/8' x 5-1/8' x 3-5/8'
175 x 130 x 92 mm
Weight
3 lbs. (1.4 kg)
 Model NumberFrequency Range (MHz)PowerAPM-5H2-305 WAPM-10H2-3010 WAPM-100H2-30100 WAPM-250H2-30250 WAPM-500H2-30500 WAPM-1000H2-301000 WAPM-5A25-605 WAPM-10A25-6010 WAPM-100A25-60100 WAPM-250A25-60250 WAPM-1B50-1251 WAPM-2.5B50-1252.5 WAPM-5B50-1255 WAPM-10B50-12510 WAPM-25B50-12525 WAPM-100B50-125100 WAPM-250B50-125250 WAPM-500B50-125500 WAPM-1000B50-1251000 WAPM-1C100-2501 WAPM-5C100-2505 WAPM-10C100-25010 WAPM-25C100-25025 WAPM-50C100-25050 WAPM-100C100-250100 WAPM-250C100-250250 WAPM-500C100-250500 WAPM-1000C100-2501000 WAPM-2.5D200-5002.5 WAPM-5D200-5005 WAPM-10D200-50010 WAPM-25D200-50025 WAPM-50D200-50050 WAPM-100D200-500
