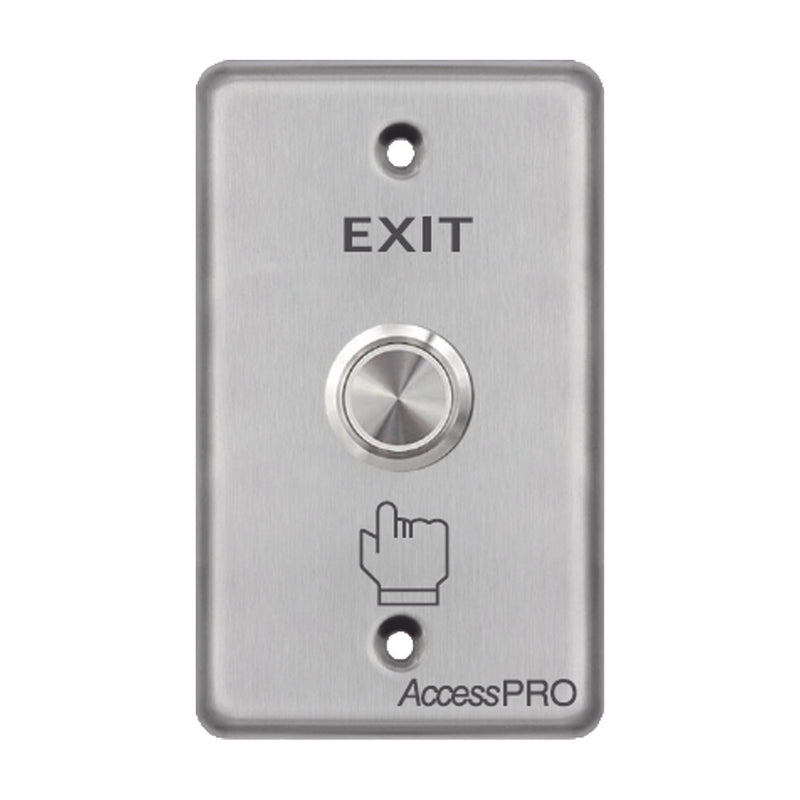

Flathead Button / Outdoor IP65
- Brand / Vendor: ACCESSPRO
- Hardware Model / MPN: APBSMC
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Exit button with stainless steel plate for outdoor surface mount. NO/COM contact supports voltage up to 24VDC. IP65 protection rating against dust and water jets. Compact dimensions of 115 x 70 x 40 mm (4.5 x 2.8 x 1.6 in). Flat head button with 22 mm diameter. Mechanical life of 500,000 operations. Operating temperature range of -10 to 55 degrees C (14 to 131 degrees F). Design oriented to access control installations in outdoor environments.
Main Features
- Contact: NO/COM
- Voltage supported: less than or equal to 24VDC
- Plate material: stainless steel
- Protection rating: IP65
- Plate dimensions: 115 x 70 x 40 mm (4.5 x 2.8 x 1.6 in)
- Button diameter: 22 mm
- Mechanical life: 500,000 operations
- Operating temperature: -10 to 55 degrees C (14 to 131 degrees F)
Performance
Contact: NO/COM
Voltage supported: less than or equal to 24VDC
Mechanical life: 500,000 operations
Protection rating: IP65
Operating temperature: -10 to 55 degrees C (14 to 131 degrees F)
Physical & Electrical
Plate material: stainless steel
Plate dimensions: 115 x 70 x 40 mm (4.5 x 2.8 x 1.6 in)
Button diameter: 22 mm
Typical applications: access control for exterior doors, residential and industrial gates, and commercial building entrances exposed to variable weather conditions.
