Weather-Ready Outdoor Wi-Fi 6 Access Point Delivering a Combined 6.3 Gbps of High-Speed Capacity, 4x4 MU-MIMO Performance, Centralized Cloud Management, and Reliable 48V PoE+ Support
- Brand / Vendor: ALTA Labs
- Hardware Model / MPN: AP6PROOUTDOOR
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
_14.26.46.png)

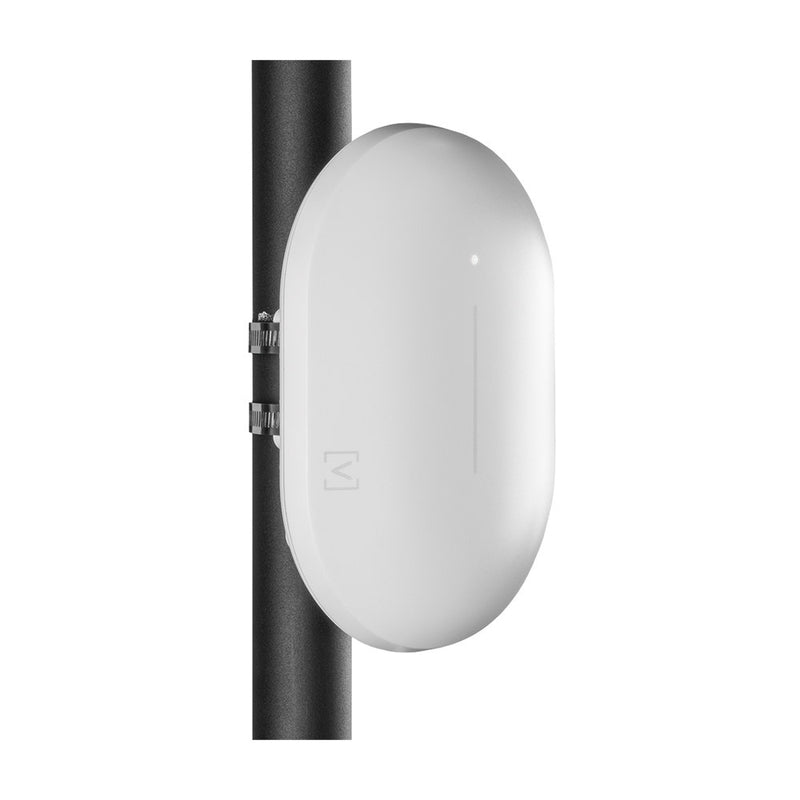

AP6-Pro Outdoor – Elevate Your Outdoor Wi-Fi
The AP6-Pro Outdoor is an omnidirectional Wi-Fi 6 access point that delivers high-performance coverage in all directions. The front design mirrors Alta Labs’ elegant indoor access points, while the back features a built-in pole mount for clean outdoor installations.
A wall-mount adapter is also included for easy mounting on exterior walls. Powered over Ethernet, the AP6-Pro Outdoor keeps cabling simple and installations tidy. It integrates seamlessly with the Alta Management Platform and the Alta Networks mobile app for management and configuration from anywhere in the world.
- Rugged IP68 weatherproof design for harsh outdoor environments.
- Omnidirectional Wi-Fi 6 with Wi-Fi 7 benefits and mesh support.
- Cloud-managed with intuitive Alta Networks mobile app.
Outdoor Performance & Mechanics
The AP6-Pro Outdoor is IP68 rated, providing maximum protection against dust and water. It is engineered for harsh environments with an operating temperature range of -40 to 70°C (-40 to 158°F).
Key Features
- IP68 for optimal weatherproof protection.
- Wi-Fi 6 with Wi-Fi 7 benefits (4096 QAM).
- Superior range and performance.
- Omnidirectional coverage + mesh connectivity.
- AltaPass™ multi-password technology.
- Scalable cloud-based management.
- Alta Networks mobile app support.
- Built-in DPI Engine.
- Hotspot functionality.
- On-the-fly changes and live scanning.
- Flexible SSID broadcasting options.
Mechanical
- Dimensions: 210 × 150 × 90 mm (8.3 × 5.9 × 3.5')
- Weight: 0.9 kg (1.9 lbs)
- Mount material: Top cover – polycarbonate; bottom cover – milled aluminum
- Wall-mount material: galvanized steel
- Weather proofing: IP68
Hardware Specifications
- Network Interface: Ethernet, Wi-Fi, Bluetooth
- Management Interface: (1) GbE RJ45 port
- Buttons: Reset / Factory reset
- LEDs: Blue, White
- Power Method: PoE+
- Power Supply: PoE+-enabled switch or 48V, 0.5A PoE adapter (Not Included in the package)
- Supported Voltage Range: 42.5 – 57V DC
- Power Consumption: 25W max, 7 – 15W typical @ 23°C (73°F)
- Maximum Transmit Power:
- 2.4 GHz: 23 dBm @ 2NSS
- 5 GHz: 26 dBm @ 4NSS
- MIMO:
- 5 GHz: 4×4, DL/UL MU-MIMO, DL/UL MU-OFDMA
- 2.4 GHz: 2×2, DL/UL MU-OFDMA
- Explicit TX beamforming
- Throughput Rate:
- 2.4 GHz: up to 573 Mbps
- 5 GHz: up to 5.8 Gbps
- Antenna Gain:
- 2.4 GHz: up to 3.3 dBi
- 5 GHz: up to 4.3 dBi
- Mounting: pole mount, wall mount
- Operating Temperature: -40 to 70°C (-40 to 158°F)
- Operating Humidity: 5 to 95% non-condensing
- Certifications: CE, FCC, IC
IP68 Rated for Optimal Weather Protection
The AP6-Pro Outdoor is IP68 rated, offering maximum protection against the environment. Your access points are built to withstand year-round exposure to rain, dust, snow, and extreme temperatures.
Designed for harsh environments with an operating temperature of -40 to 70°C (-40 to 158°F).
Wi-Fi 6 with Wi-Fi 7 Benefits
Built on an innovative dual-band, 6-stream Wi-Fi 6 platform from Qualcomm®, the AP6-Pro Outdoor incorporates 4096 QAM, one of the primary features of Wi-Fi 7. This enables up to 6.3 Gbps of combined Wi-Fi capacity.
Omnidirectional Coverage + Mesh Connectivity
The AP6-Pro Outdoor uses an omnidirectional antenn
