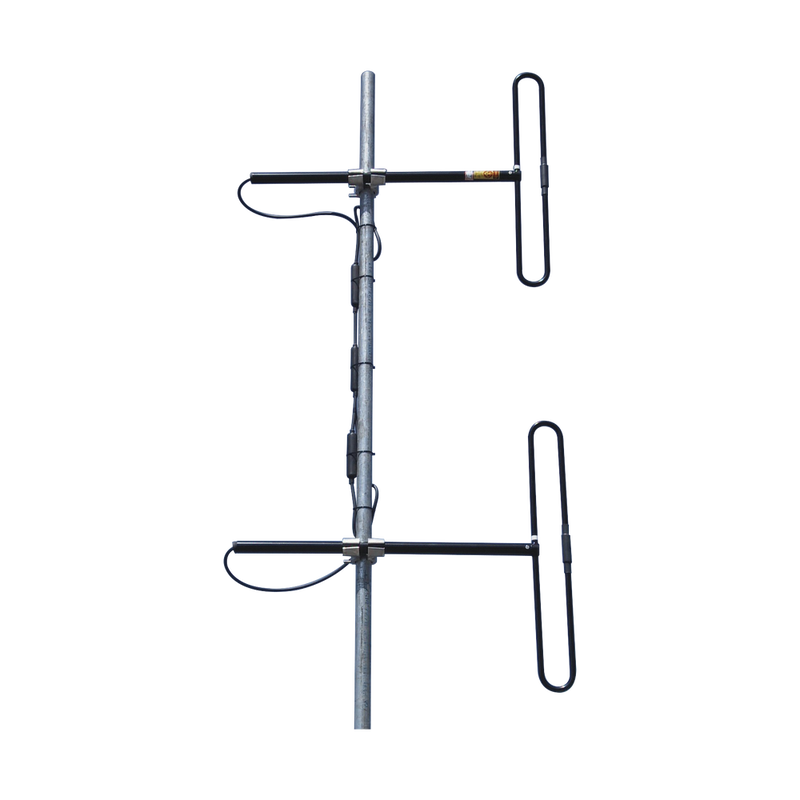

Two Bay Aereal Antenna, 110-138 MHz, 3-5.6 dB gain, 28 MHz, 500 Watt, N Male connector.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: ANT-120D3
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Two Bay Aereal Antenna, 110-138 MHz, 3-5.6 dB gain, 28 MHz, 500 W, N Male connector.
- Frequency (Continuous): 110-138 MHz.
- Dipoles: 2.
- Gain: 3-5.6 dBd.
- Bandwidth: 28 MHz.
- Power rating (typ.): 500 Watts.
- Impedance: 50 Ohm.
- VSWR: 1:1.5 or less.
- Vertical beamwidth (3/8wl): 34º
- Connector: N Male on harness feed cable.
- Lightning protection: DC Ground.
- Wind rating: 125 mph.
- Dimensions (H x D) (max): 119 x 45 in.
- Weight (antenna + clamps): 15 lbs.
- Suppotr mast is customer-supplied.
