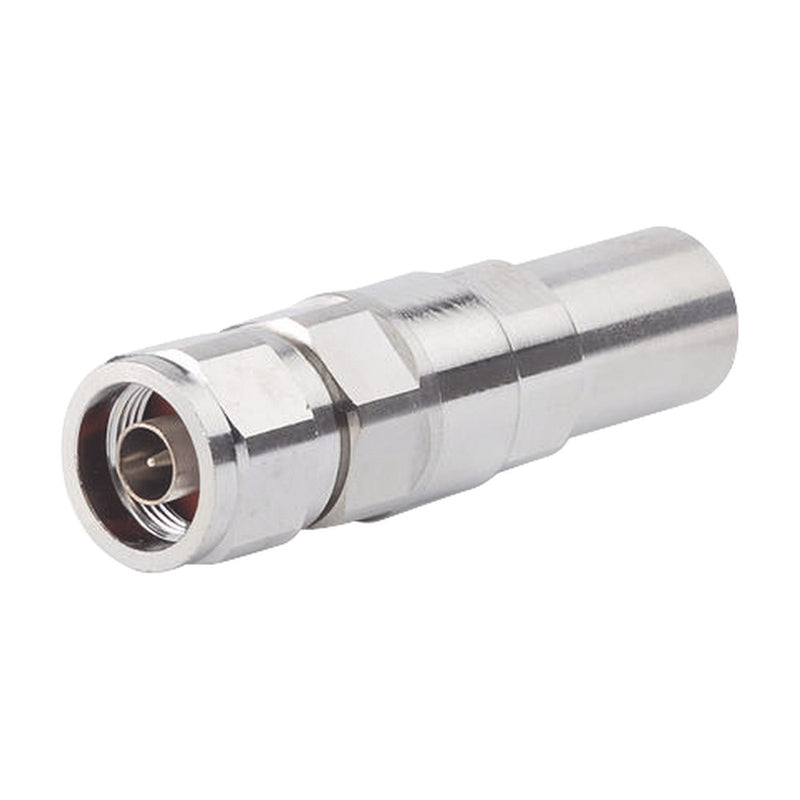

N 50 Ohm Male Type Positive Stop for 1/2" AL4RPV-50, LDF4-50A, HL4RPV-50 Cable connector
- Brand / Vendor: ANDREW / COMMSCOPE
- Hardware Model / MPN: L4TNM-PSA
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: ANDREW / COMMSCOPE | Model / MPN: L4TNM-PSA
Availability: Immediate Dispatch from USA Warehouses
Electrical Specifications
- Connector Impedance: 50 ohm
- Operating Frequency Band : 0 – 8800 MHz
- Cable Impedance: 50 ohm
- 3rd Order IMD, typical : -116 dBm @ 910 MHz
- 3rd Order IMD Test Method: Two +43 dBm carriers
- RF Operating Voltage, maximum (Vrms): 707.00 V
- dc Test Voltage: 2000 V
- Outer Contact Resistance, maximum: 0.30 mOhm
- Inner Contact Resistance, maximum: 2.00 mOhm
- Insulation Resistance, minimum: 5000 MOhm
- Average Power : 0.6 kW @ 900 MHz
- Peak Power, maximum: 10.00 kW
- Insertion Loss, typical : 0.05 dB
- Shielding Effectiveness: -130 dB
Return Loss/VSWR
Frequency Band VSWR Return Loss (dB)
45–1000 MHz 1.02 39.00
1010–2200 MHz 1.03 37.00
2210–3000 MHz 1.05 33.00
3010–4000 MHz 1.09 27.00
4010–6000 MHz 1.25 19.00
6010–8000 MHz 1.33 17.00
Dimensions
Nominal Size : 1/2 in
Diameter : 22.35 mm | 0.88 in
Length : 76.70 mm | 3.02 in
Weight : 94.71 g | 0.21 lb
