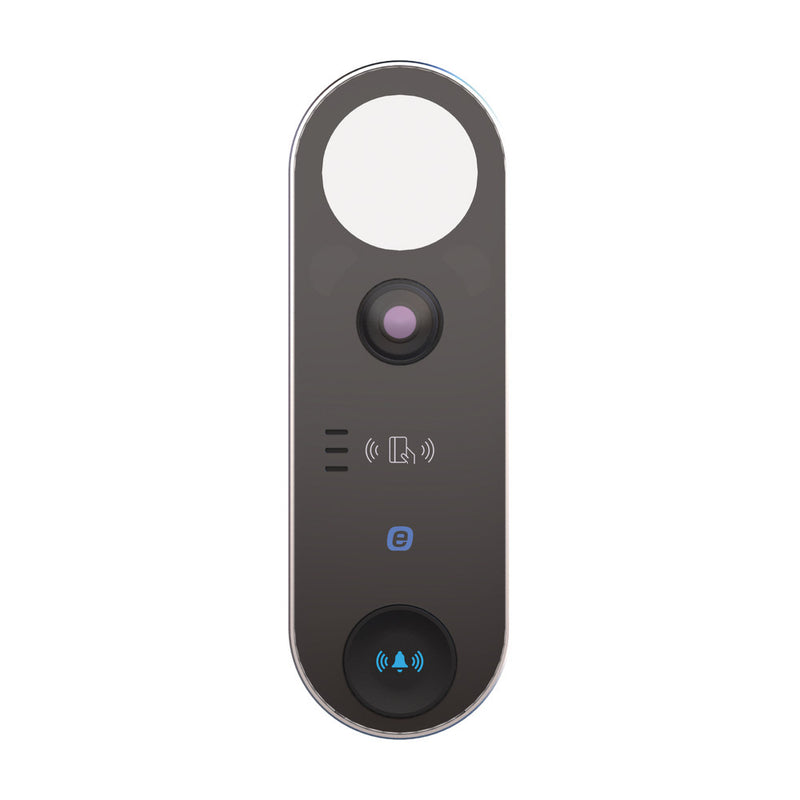

2MP IP Doorbell / PoE / IP65 / Opening from APP / Supports up to 6 monitors and 10 intercoms / Supports MIFARE cards / 1 relay output
- Brand / Vendor: EPCOM
- Hardware Model / MPN: ACVP2W-GEN3
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Answer the call from your phone, see who's at the door, and talk in real time before you decide to let them in.
| Resolution | 2MP (1920×1080) |
| Field of view | V:74° / H:139° / D:170° |
| IR / White light range | 1–9.8 ft / 1–3.3 ft |
Give tenants, employees, or frequent visitors keyless access — with a 13.56MHz MIFARE card or a tap from their phone.
| Supported cards | Mifare / Desfire / FM1208 / Gicard |
| Protocol / Frequency | ISO14443A/B · 13.56MHz |
| Card capacity | Up to 3,000 |
- Max. resolution: 2MP (1920 x 1080)
- Lens: 2.3mm @F2.2, fixed iris
- Min. illumination: 0 lux (white LED on)
- WDR 80dB / BLC / HLC / Defog
- 2D/3D NR
- H.265+ / H.265 / H.264+ / H.264 / MJPEG
- ONVIF · Supports P2P
- IP65 (indoor / outdoor)
- Power: 12VDC/0.5A or PoE
- Consumption: < 6W
- Operating temp: -4°F ~ 122°F
- Humidity: < 95% non-condensing
- Dimensions: 5.91 x 1.97 x 1.17 in
- Weight: approx. 5.1 oz
- Installation: wall mount
- Interface: RJ45 100M
- Storage: microSD up to 256GB
- Audio: 1CH + built-in mic and speaker
- RS485 · Configurable Wiegand
- 1CH alarm, lock output, exit button, and door contact
- Anti-tamper protection
- Remote monitoring: web / iOS & Android app
Where can you install it?
With WiFi, PoE, or 12VDC power and support for up to 6 linked monitors / 10 intercoms, the ACVP2W-GEN3 adapts to different types of entryways.
Built-in smart analytics
Compatible access cards
This doorbell reads 13.56 MHz credentials only. Ordering the right card the first time avoids a return and a second trip to the site.
The most common ordering mistake with this unit is buying a generic 125 kHz proximity card (EM / HID Prox / Indala style). Those operate on a completely different radio frequency and the reader will never see them — no configuration or firmware setting can make them work.
| ✓ Works | ✗ Does NOT work | |
| Frequency | 13.56 MHz | 125 kHz |
| Technology | MIFARE, Desfire, FM1208, Gicard | EM, HID Prox, Indala |
| Standard | ISO 14443 A/B | Not supported |
Complete your installation
The ACVP2W-GEN3 is part of the e Series ecosystem. Pair it with these compatible monitors and accessories.
How it all connects
One doorbell can link to multiple indoor monitors and a chime, so the whole property gets the call.
Full specifications
| Camera & Image | |
| Image sensor | 1/2.8' progressive scan CMOS |
| Max. resolution | 2MP — 1920 x 1080 |
| Electronic shutter | 1/2s ~ 1/100,000s |
| Lens | 2.3mm @F2.2, fixed iris · FOV V:74° H:139° D:170° |
| Min. illumination | 0 lux (with white LED on) |
| WDR / BLC / HLC / Defog / DNR | 80dB · Yes · Yes · Yes · 2D/3D NR |
| Video compression | H.265+/H.265/H.264+/H.264/MJPEG (Baseline/Main/High) |
| Bit rate | 64 Kbps – 4 Mbps, VBR/CBR |
| Streams | Main: 1080P/720P (1–30 fps) · Sub: 720P/D1/CIF |
| Audio | Built-in mic + speaker, G.711 A/U |
| Access Card | |
| Card type | Mifare / Desfire / FM1208 / Gicard |
| Protocol / Frequency | ISO14443A/B · 13.56MHz (125kHz not supported) |
| Read duration / distance | < 1s · 0–1.2 in |
| Card capacity | Max. 3,000 |
| Interfaces | |
| Network | 1x RJ45 100M · WiFi 2.4G |
| RS485 / Wiegand | Yes · Input or output configurable |
| Inputs / outputs | 1CH alarm, 1CH lock, 1CH exit button, 1CH door contact, 1CH anti-tamper |
| Storage | microSD up to 256GB + remote storage |
| Button / indicator / reset | Doorbell button, LED indicator, reset button |
| Function & Security | |
| Remote monitoring | Web/CMS client · up to 3 simultaneous users, multi-stream |
| Network protocol | UDP, IPv4/IPv6, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, UPnP, HTTPS, HTTP |
| Interface | ONVIF |
| Smart analytics | Face detection/capture, scene change detection, video blur detection |
| General function | Watermark, IP filtering, video masking, heartbeat, distortion correction |
| Door unlocking | Card swipe or remote app control |
| White light / IR range | 1–3.3 ft (soft lig |
