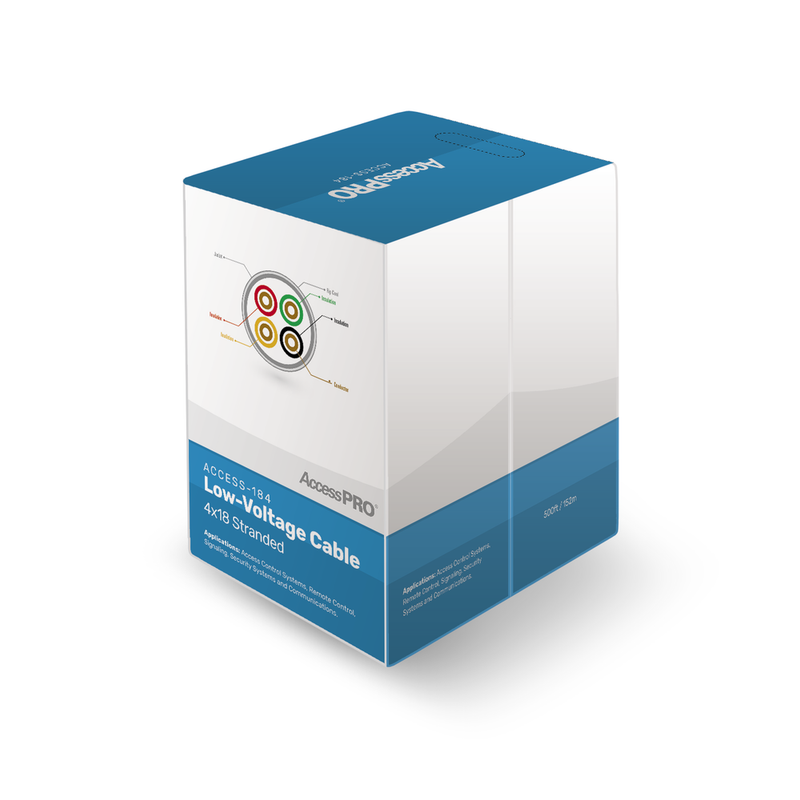

500 Ft Reel, 4 Core 18 AWG Stranded Copper Conductor, FRPVC, CM, for access control applications
- Brand / Vendor: ACCESSPRO
- Hardware Model / MPN: ACCESS-184/500
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: ACCESSPRO | Model / MPN: ACCESS-184/500
Availability: Standard Supplier Lead Time
4 Core 18 AWG Stranded Copper Conductor Individual insulation of High-Quality FRPVC
Outer Sheath PVC cover with anti-flame CM Ratings
Applications:
- Industry: Access Control applications, analog signals ON / OFF.
- Security: Alarms and access control, the connection of the control panel with accessories such as motion sensors, magnetic plates, and counters, etc.
- Audio: Connecting speakers.
Physical Characteristics :
Conductor
- Size 0.80mm²
- Formation STR 16/30AWG x 4C
- Conductor Pure Copper
Insulation
- Average Thickness 0.25mm
- Nom. Diameter 1.80±0.1mm
- Material FRPVC- Fire Resistant Polyvinyl Chloride
- Color Black, Red
Jacket
- Average Thickness 0.6 mm
- Nom. Diameter 4.8±0.2mm
- Material CM Ratings PVC-Polyvinyl Chloride
- Color White
- RoHS Compliant Yes
Mechanical Characteristics
- DC Resistance,Max Ohm/km(20℃) 21.80
- Capacitance 22.80 pF/ft. nom.
- Impedance 67 Ohms nom
- Temperature -20°C to 60°C
- Operating Voltage Max. 300 Volts
Industry Standard &
