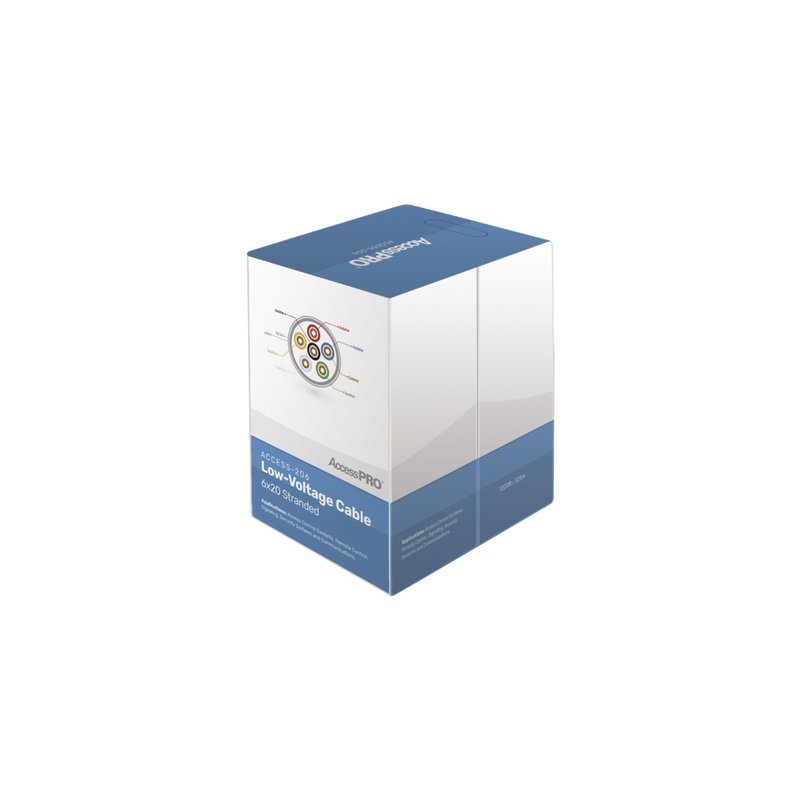

6 Wires 20 AWG Stranded Copper Conductor, individual insulation of High-Quality FRPVC, Outer Sheath PVC cover with anti-flame CM Ratings. Access control applications.
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All ACCESSPRO Products

6 Wires 20 AWG Stranded Copper Conductor, individual insulation of High-Quality FRPVC, Outer Sheath PVC cover with anti-flame CM Ratings. Access control applications.

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: ACCESSPRO
  • Hardware Model / MPN: ACCESS-206
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Intrusion Systems
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
$215.41
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units $215.41 Standard
5 - 9 units $204.64 Save 5%
10+ units $193.87 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$215.41
Standard Catalog
5 – 9 Units
$202.49
Save ~6%
10+ Units
$189.56
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing

6 Wires 20 AWG Stranded Copper Conductor, individual insulation of High-Quality FRPVC,  Outer Sheath PVC cover with anti-flame CM Ratings.



Applications:

  • Industry: Access Control applications, analog signals ON / OFF.
  • Security: Alarms and access control, connection of the control panel with accessories such as motion sensors,magnetic plates and counters, etc.
  • Audio: Connecting speakers.

Physical Characteristics

Conductor

  • Size                                                                         0.50mm²
  • Formation                                                                STR 16/32AWG x 6C
  • Conductor                                                                Pure Copper

Insulation

  • Average Thickness                                                  0.25mm
  • Nom. Diameter                                                        1.5±0.1mm
  • Material                                                                    FRPVC- Fire Resistant Polyvinyl Chloride
  • Color                                                                        Black , Red , Green , White

Jacket

  • Average Thickness                                                 0.6mm
  • Nom. Diameter                                                       4.6±0.2mm
  • Material                                                                  CM Ratings PVC-Polyvinyl Chloride
  • Color                                                                       White
  • RoHS Compliant                                                     Yes

Mechanical Characteristics

  • DC Resistance,Max Ohm/KM (20℃)                      34.80
  • Capacitance                                                            20.5 pF/ft. nom.
  • Impedance                                                              74 Ohms nom
  • Temperature                                                           -20°C to 60°C
  • Operating Voltage                                                  Max. 300 Volts



Industry Standard

  • ISO 9001:2015

Packing

  • 1000FT/305M- Easy Pull Box
