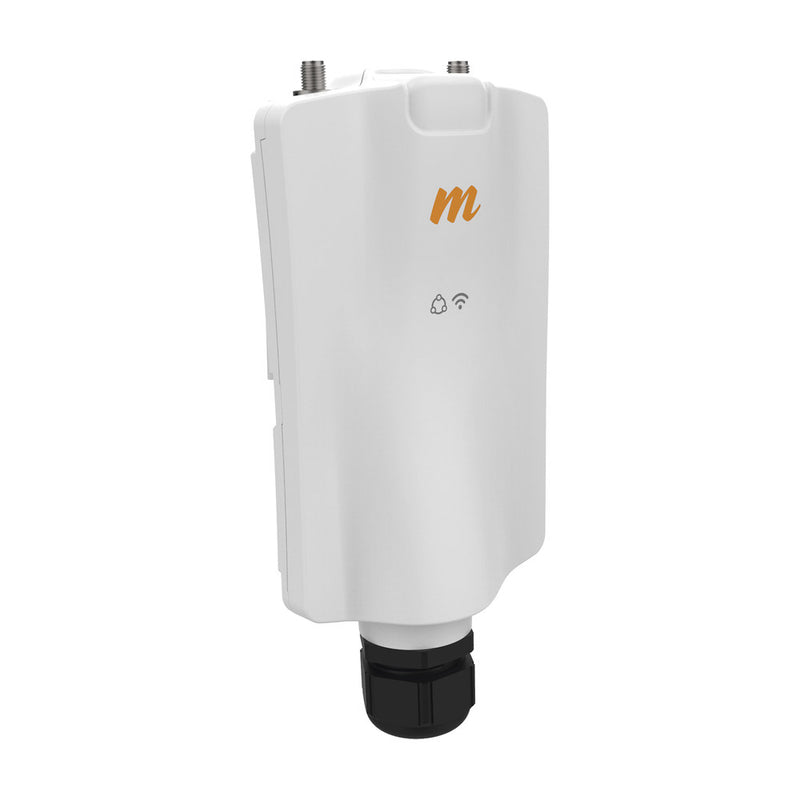

MU-MIMO 2x2 Access Point, 4.9-6.4 GHz, IP 67, Connected, Multipoint Point up to 700 Mbps, 2 SMA-female connectors, Automatic adaptation to the environment, Monitoring through the cloud
- Brand / Vendor: MIMOSA NETWORKS
- Hardware Model / MPN: A5X
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Mimosa A5x
Break the Barriers to Entry with the 2x2 Connectorized Access Point
Main Features
- • 700 Mbps Aggregate Speed: Maximum DL/UL performance.
- • Gigabit Ethernet: 10/100/1000 Mbps port.
- • Advanced Security: WAP, AES, RADIUS, and 802.1x authorization.
- • Operation Mode: PTMP Access Point.
Radio & Capacity
- • MIMO 2x2:2: OFDM up to MCS9 (256-QAM).
- • Broad Spectrum: 4.9 GHz – 6.4 GHz.
- • Channels: 20/40/80 MHz widths.
- • Client Capacity: 64 (WiFi Interop) / 44 (Sync/Spectrum Re-use).
- • Power: Max 27 dBm transmission.
Specs & Environment
- • IP67 Protection: Dust and waterproof outdoor housing.
- • Temperature: -40°F to 131°F (-40°C to 55°C).
- • Power Supply: Passive PoE 24-56 Vdc (Injector not included).
- • Efficiency: Low 9W - 12.9W consumption.
Physical Dimensions
Height: 7.42 in
Width: 2.95 in
Depth: 1.73 in
Weight: 0.70 lbs (0.30 kg)
Note: Equipment includes an internal shock protector. Proper physical grounding is highly recommended for optimal safety.
Experience the A5x
• Free Ground Shipping: Automatically applied to all orders of $500.00 USD and above across the 48 Contiguous United States.
• Same-Day Dispatch: Orders placed before 2:00 PM CST (Mon–Fri) dispatch the same business day from our Texas & Florida distribution hubs.
• Carrier & Transit: UPS Ground / FedEx Ground (typically 2–5 business days).
• 100% Genuine Gear: Brand new, factory-sealed hardware directly sourced via authorized manufacturer channels.
• Full Factory Warranty: Covered by standard manufacturer warranty and RMA replacement support.
• 30-Day Hassle-Free Returns: Unopened and factory-sealed equipment eligible for return within 30 days of delivery.
