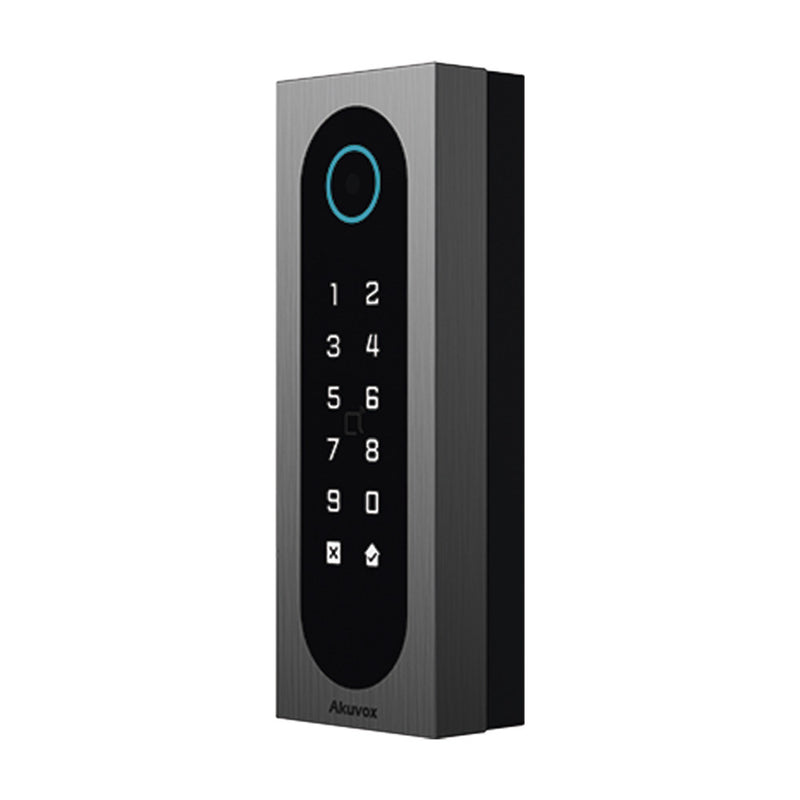

Slim Access Control Akuvox A08S / Aluminum and Tempered Glass / IP65 & IK09 / Capacity for 20,000 Cards / Multi Access Methods (QR, Bluetooth, PIN, RFID) / Supports Wiegand / 1 Relay Output
- Brand / Vendor: AKUVOX
- Hardware Model / MPN: A08S
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Slim Single-Door Access Control Terminal / QR, Bluetooth, PIN, NFC, RFID / PoE / IP65 & IK09
The A08S is a slim-profile access control terminal that integrates a door controller and card reader into a single unit. It supports multiple credential types including QR codes, Bluetooth mobile access, PIN entry, NFC, and dual-frequency RFID cards. The device operates via PoE (IEEE 802.3af) or 12 VDC power and communicates through Ethernet, RS485, and configurable Wiegand input/output. With an aluminum frame and tempered glass front panel, it achieves IP65 and IK09 ratings for outdoor and vandal-resistant installations. Cloud-based management is available through the Akuvox Cloud platform at no additional cost.
Main Features
- Door controller with Smart Plus mobile app integration
- NFC mobile access support
- Bluetooth credential unlocking
- Dual-frequency card reader: 125 KHz EM and 13.56 MHz MIFARE
- Visitor QR codes generated via Smart Plus app with configurable validity
- Configurable Wiegand input/output
- PoE (IEEE 802.3af) and 12 VDC power options
- Single door controller
- Access schedule import/export functionality
- Access level management
- Access log inquiry and export
- Capacity for 20,000 cards and 100,000 access events
- IP65 environmental protection rating
- IK09 vandal resistance rating
Performance & Access
- Credential methods: QR code, Bluetooth, PIN, NFC, 125 KHz EM, 13.56 MHz MIFARE
- Card capacity: 20,000
- Access event storage: 100,000
- Visitor QR generation: Smart Plus app with time validity
- Access schedules: Import/export supported
- Access levels: Configurable management
- Log management: Inquiry and export functions
Physical & Electrical
- Operating voltage: 12 VDC or PoE (IEEE 802.3af)
- Relay outputs: 1
- Inputs: 2
- Front panel: Tempered glass
- Frame: Aluminum alloy
- Communication ports: Ethernet, RS485, Wiegand
- Protection rating: IP65
- Vandal resistance: IK09
- Surface mount dimensions: 50 x 140 x 26.7 mm (2.0 x 5.5 x 1.1 in)
- Operating humidity: 10% to 90%
- Operating temperature: -20 degC to +55 degC (-4 degF to +131 degF)
- Storage temperature: -30 degC to +70 degC (-22 degF to +158 degF)
Management & Integration
- Cloud platform: Akuvox Cloud (no additional cost)
- Mobile app: Smart Plus for iOS and Android
- Wiegand: Configurable input/output
- Serial interface: RS485
- Network interface: Ethernet
Typical applications: Single-door access points in commercial buildings, residential complexes, remote facilities requiring internet-based management, and outdoor installations requiring weather and vandal resistance.
