Item#: A02 Browsing History
Shop All AKUVOX Products

Smart, Compact and Elegant Access Control Terminal for 1 Door / 125 kHz Prox Reader / MIFARE 13.56 MHz / Keypad / 20,000 Users / Web Management

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: AKUVOX
  • Hardware Model / MPN: A02
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Access Control
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
$202.48
55+ in stock • Ships from USA Warehouses
Volume Contractor Pricing:
1 - 4 units $202.48 Standard
5 - 9 units $192.36 Save 5%
10+ units $182.23 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$202.48
Standard Catalog
5 – 9 Units
$190.33
Save ~6%
10+ Units
$178.18
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks

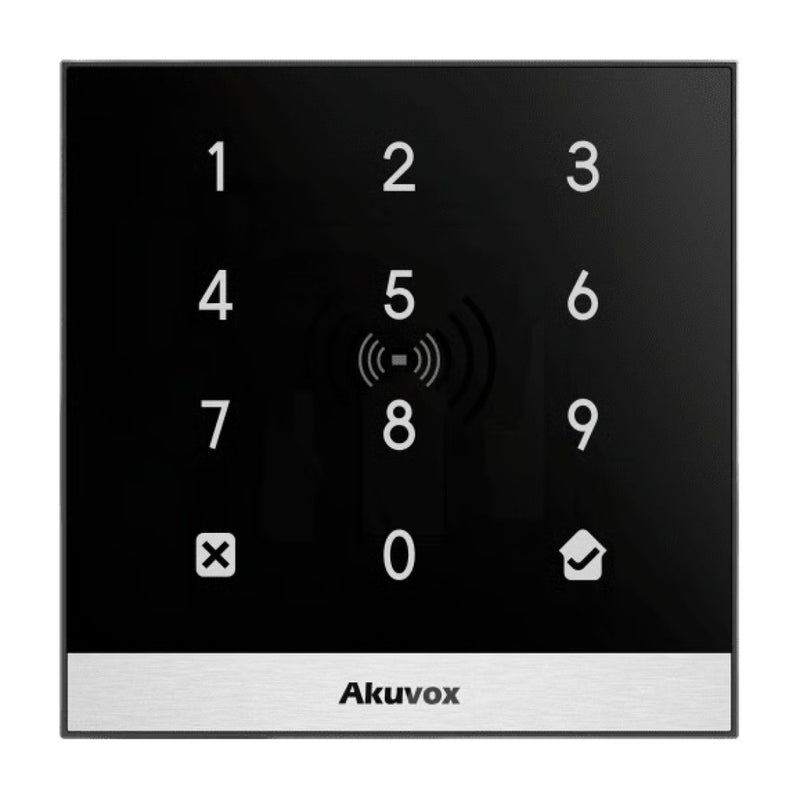

Akuvox A02 access control terminal AKUVOX - Access Control Terminal
A02 Access Control Terminal
An all-in-one IP access control terminal with RFID reader, controller, and touch keypad, supporting PIN, NFC, and card-based door entry over a single PoE Ethernet connection.
▪ Stylish touch keypad design ▪ Two-factor authentication (PIN + card)
▪ 20,000 card capacity & 100,000 event log ▪ Configuration via web browser
▪ Multi-frequency RFID reader + NFC ▪ Cloud-managed via ACMS
Technical Specifications

Physical & Power
Front panel Touch keypad
Frame Aluminum alloy
RFID reader 13.56MHz & 125kHz
Relay out 1
Inputs 2
Wiegand Supported
Speaker 8Ω / 0.5W
Tamper alarm Supported
Ethernet RJ45, 10/100Mbps
Power 802.3af PoE or 12V DC
Power output 12V, 600mA
IP rating IP65
Mount Flush or wall
Dimensions 3.39x3.39x1.30 in
(86x86x33 mm)
Humidity 10-90%, no condensing
Operating temp. -4°F to 131°F
(-20°C to +55°C)
Storage temp. -22°F to 158°F
(-30°C to +70°C)
Door Entry Feature
Access schedule export/import
Access level management
Switch to reader-only mode
Door access log query and export
Shift scheduling and attendance management
Capacity
Users 20,000
Cards 20,000
Event log 100,000
Deployment & Maintenance
Auto-provisioning
Web management portal
Web-based packet dump
Configuration backup / restore
Firmware upgrade
System logs
Networking
Protocols IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP

Additional Views

Akuvox A02 - left side view
Left side view
Akuvox A02 - right side view
Right side view

A02 official product image 1 A02 official product image 2 A02 official product image 3 A02 official product image 4 A02 official product image 5

Full manufacturer datasheet with wiring diagrams and mechanical drawings available for download.   Download PDF datasheet
