Belden Cable Duobond II Shield + 90% Tinned Copper Braid, Insulation: Polyethylene Semi-Solid
- Brand / Vendor: BELDEN
- Hardware Model / MPN: 9913/1000
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico

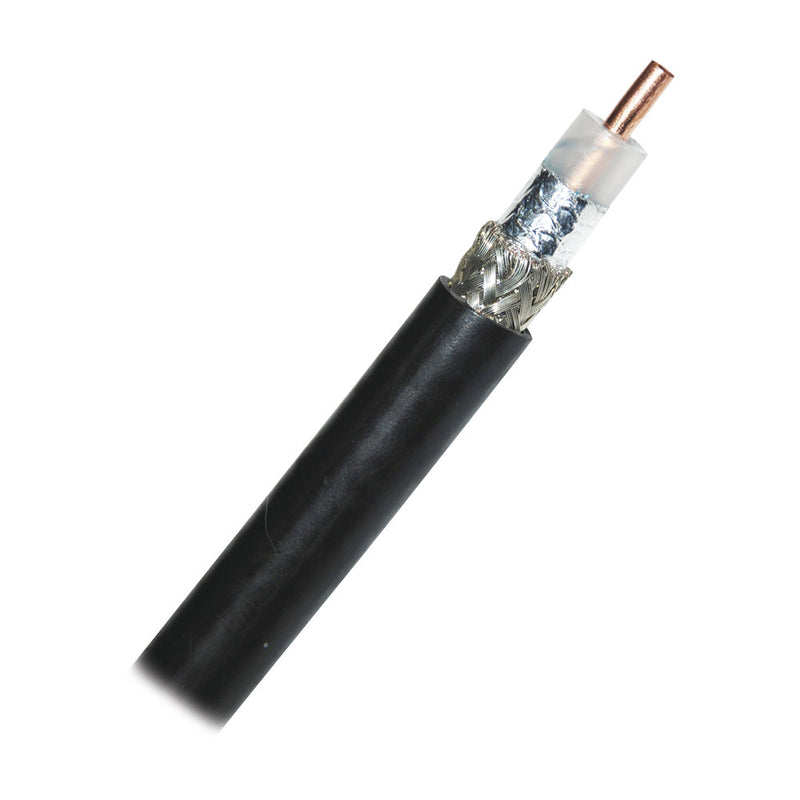

Bare copper conductor 10 AWG .108 ', semi-solid polyethylene insulation, Duobond® II, tinned copper braid shielding (90% coverage), PVC cover.
Advantage :
- Coaxial that complies with the RG8 / U standard
- Pure copper conductor, and solid type for less attenuation (multi-filar version: 9913F)
- Polyethylene insulation for better propagation speed (84%)
- Double shielding:
- Aluminum sheet attached to the insulation to prevent wrinkles in the connectorization ('bonded duo foil', Belden patent)
- 90% dense mesh to avoid interference noise, copper (maximum conductivity) with tin bath (to prevent moisture from entering).
- Low loss (series 'low loss' of Belden): at 30 meters, only 2.6dB @ 400Mhz
- High power: 619 Watts @ 400 Mhz
- High voltage supported 600V RMS
- Minimum capacitance (electrostatic charge): 24.6 picofarads per foot
- Wide temperature range: from -40 ℃ to + 80 ℃
- Supports maximum pulling force: 300 pounds
Features :
- Impedance: 50 Ohms.
- Outside Diameter; .405 in. 10.29mm
- Speed ​​Factor: 84%.
- Attenuation in 30 meters. UHF 450 MHz.2.7 dB.
- Internal conductor AWG gauge: 10 (.108) Solid copper.
- Insulation: Semi-solid polyethylene.
- Shielding: Duobond II + 90% tinned copper braided mesh.
* Price per reel of 1000 ft.
