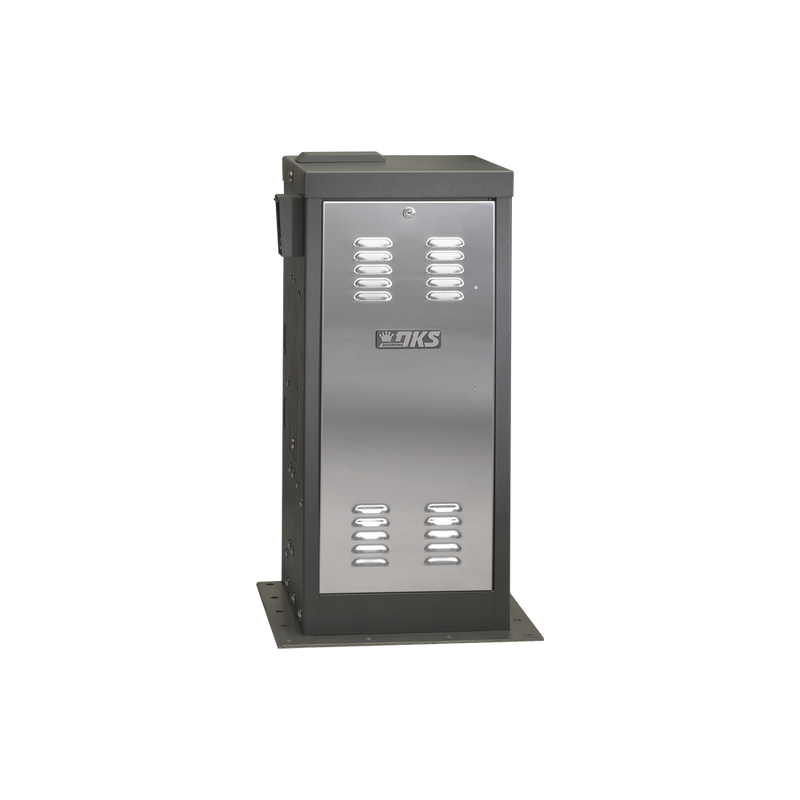

Sliding Gate Operator / 1HP / 115V 1P / #60 Chain (20 ft Included)
- Brand / Vendor: DKS DOORKING
- Hardware Model / MPN: 9210-381
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
DoorKing's Maximum Security operators are designed to operate vehicular slide gates in limited (Class III) and restricted (Class IV) applications only. These operators must never be used in applications serving the general public. These operators are designed so that they can easily be mounted in the front, center or rear of the gate without any costly and time consuming field modifications. Center mounting the operator requires the pedestal mounting base (optional on 9210, 9220). The speed control on these operators (except 9210) allows the user to set the speed of the gate from 1/2 to 2 feet/sec., and provides slow-start and slow-stop functions as well.
- Direct driven limit nuts.
- Anti-tailgating feature.
- Adjustable mid-stop.
- Gate tracker reporting output.
- Ports for plug-in loop detectors.
- Two convenience outlets.
- Fail-secure operation includes crank for manual operation.
- Programming switches.
- Built-in reset switch.
- Built-in power On/Off switch.
- Maximum gate length 100-feet.
- Maximum gate weight 3000 Lb., #60 chain*. (*Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.)
- Set speed 1 Ft./sec.
- 40:1 gear reduction running in a continuous oil bath.
- 1 HP continuous-duty motor.
- 115, 208, 230 VAC single-phase, 208, 230, 460 VAC three-phase.
- Operator is shipped with chain brackets and 20-feet of #60 chain.
- Class III and IV applications only.
- ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions: 20 'W x 35.5'H x 18'D
- Heavy-duty pedestal mounting stand, 9210, 9220. (Recommended for gates over 30-feet to allow use of a chain support rail).
- Stop - Go traffic signal.
- Plug-in loop detectors.
- Heater kit for cold environments.
- Surge suppressors.
