Virtual Power Meter Sensor by USB on PC for 25-1000 MHz.
Key Technical Specifications & Features
- Brand / Vendor: BIRD TECHNOLOGIES
- Hardware Model / MPN: 7020-1-0303-01
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$3,177.00
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units
$3,177.00
Standard
5 - 9 units
$3,018.15
Save 5%
10+ units
$2,859.30
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$3,177.00
Standard Catalog
5 – 9 Units
$2,986.38
Save ~6%
10+ Units
$2,795.76
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks

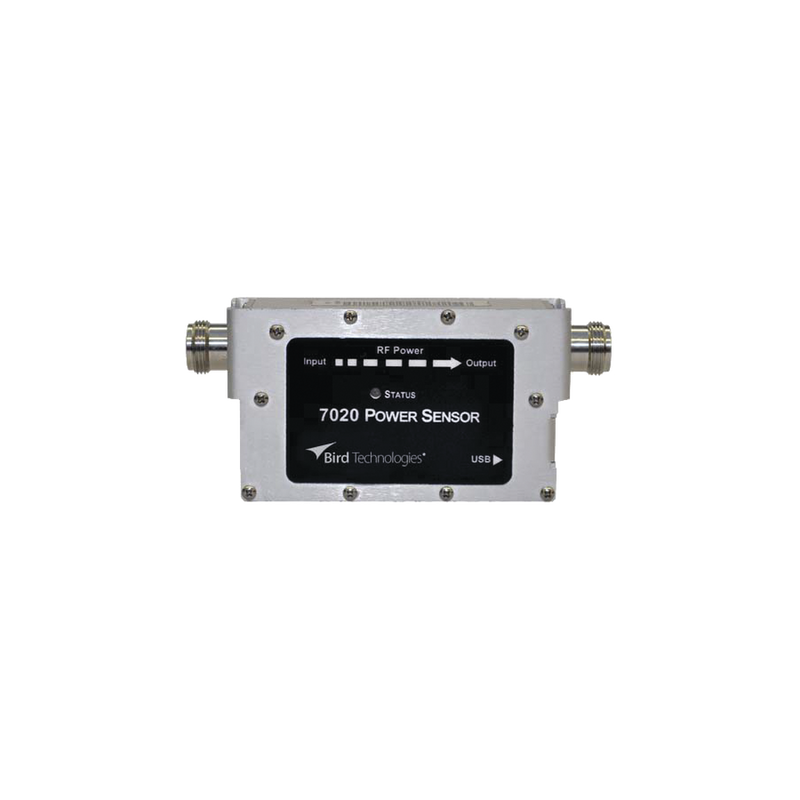

Virtual Power Meter Sensor by USB on PC for 25-1000 MHz.
- The 7020 series, 350 MHz - 4 GHz, Basic Power Sensor is an economical and plug and play solution for your power measurement needs.
- The 7020 determines and reports direct and reflected real average power and VSWR over a wide frequency range of 25 MHz to 1.0 GHz or 350 MHz to 4.0 GHz.
- It also does not require field calibration, only requires factory calibration once a year and is traceable to the National Institute of Standards and Technology (NIST).
- Item No: 7020-1-030301
- Item Name: Basic Power Sensor
- Frequency Range: 25 MHz - 1.0 GHz
- Power Range: 0.5 W to 500 W
- Measurement Accuracy: +/- (4% of reading + 0.05 W) (above 35 °C or below 15 °C add 3%)
- Min Forward Power for Reflected Measurement: 5.0 W
- Peak-Average Ratio: 12 dB, Max.
- Insertion Loss: 0.1 dB, Max.
- Insertion VSWR: 1.10 Max.
- Impedance Ω: 50 (nominal)
- Response Time: 3 sec.
- VSWR Range: 1.15 to 99.9
- Connectors: N (F)
- Directivity: 28 dB, Min.
- Calibration Interval: Annually (Recommended)
- Power Supply: Source: 5Vdc from USB host
- Current Draw: 35 mA
- Interface Protocol: USB 2.0
- Connector: USB Type ‘B’ with “SeaLATCH” locking USB connector
- Data Logging: with VPM3 Software
- Standards Compliance CE: European Standard EN 61326-1:2006 – Electronic Equipment for Measurement, Control and Laboratory Use – EMC Requirements in accordance with EMC Directive (2004/108/EC)
- RoHS: Compliant
- Upgradeable: Firmware is Field-Upgradable via the USB Port
- Dimensions: 4.8“ x 2.6“ x 1.3” [Nominal] (122 x 66 x 32mm)
- Weight: 1.0 lbs (0.45 kg) [Nominal]
- Mechanical Shock and Vibration: MIL-PRF-28800F class 3
- Operating Temperature: -30 to +60 °C (-22 to +140 °F)
- Storage Temperature: -40 to +80 °C (-40 to +176 °F)
- Humidity: 95% (non-condensing)
- Altitude: 4,572 m (15,000 ft.)
