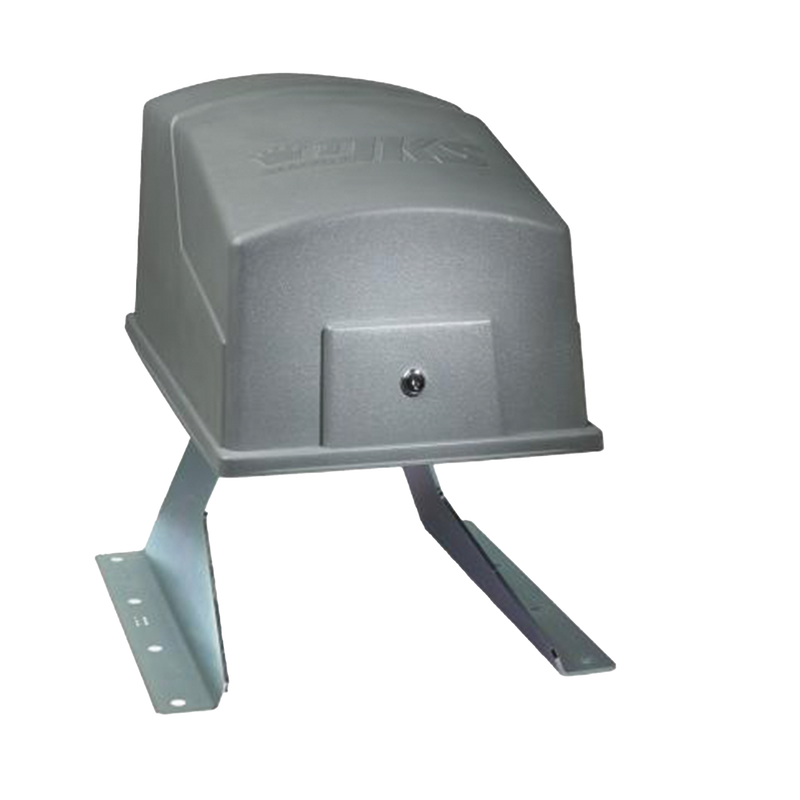

Vehicular Swing Gate Operator

AESTHETICALLY PLEASING ORIGINAL QUIET DESIGN

The unique configuration of these Operators allows the gate arm to rotate from underneath the Operator, enabling the arm to attach to the bottom rail of the gate, were it is virtually unseen from outside the gate. The fully enclosed Operators prevent water from contaminating the output shaft, bearings, and electronics.

Features:

• Self-adjusting, no magnetic maintenance limits.
• Overlap feature for dual swing gate operation.
• Designed with a built-in primary and secondary entrapment prevention system.
• Ports for plug-in loop detectors.
• Fail-safe release.
• Tamper detects circuit.
• Gate tracker reporting output.
• Programming switches.
• Built-in reset switch.
• Built-in power On/Off switch.

Specifications:

• Maximum gate width 10 feet.
• Maximum gate weight 400 pounds*.  (*Assumes gate swings level and is in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator).
• Swings gate 90 degrees in approximately 10 seconds.
• 1/2 HP limited-duty motor.
• 115 VAC, 4.3 Amps.
• Class I applications.
• Compliant with UL 325 and 991. ETL Listed.  (Note: To comply with UL 325 and industry safety guidelines, this gate operator must install additional Type B1 and/or Type B2 entrapment protection devices. Your professional DKS system installer can provide more details on these devices and current industry safety standards.)
• Dimensions (operator only): 13.5'W x 11'H* x 23'D (* Height of operator only. Actual height above ground is determined by which mounting method is used)
