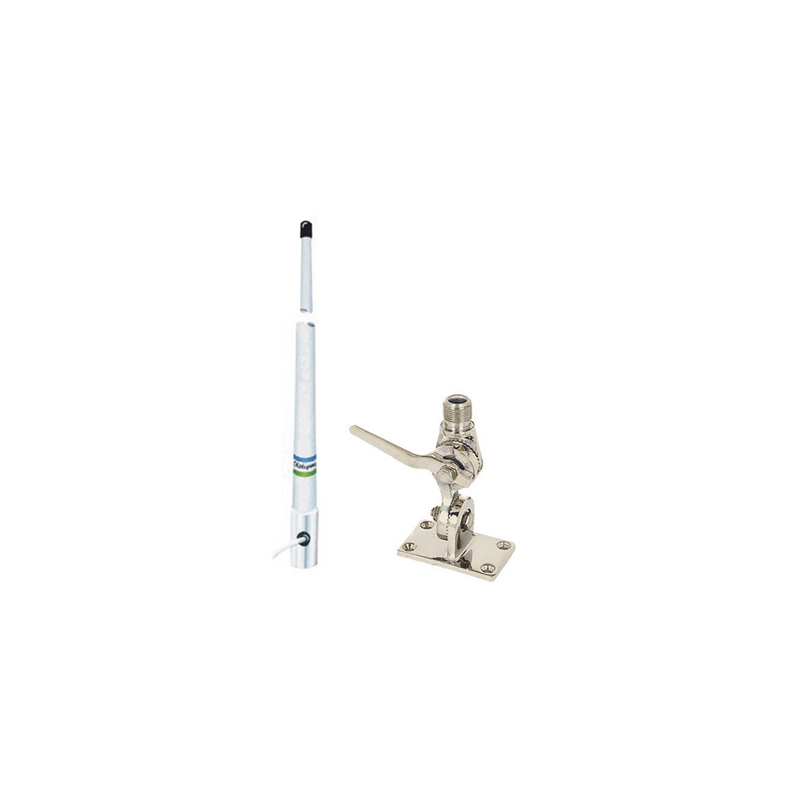

5206N Marine Mobile antenna VHF of 6dB, and mounting 4187
- Brand / Vendor: SHAKESPEARE
- Hardware Model / MPN: 5206N-KIT
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
5206-N Classic VHF Antenna
8’ (2.4m) VHF Marine Band 6dB
End-fed with matching stub
An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor. The 5206-N has a nylon ferrule.
- Quality copper cable elements for good range and efficiency
- Nylon ferrule.
- Includes 15ft RG-58 cable, which can be cut to size, and a PL-259 connector
- Suggested mount: Style 495 Lift ‘n Lay Mount or Style 4186 Ratchet Mount (sold separately)
- Great value!
- One section
| Shakespeare 5206-N Specifications | |
| Band: | VHF Marine Band |
| Antenna Gain: | 6dB |
| Max. Input Power: | 50 watts |
| SWR: | nominally 1.3:1 at 156.8 MHz |
| Bandwidth: | 5 MHz within 2.0:1 VSWR |
| Ferrule: | Nylon |
| Coax Supplied: | 15 ft of RG-58 |
| Connector Supplied: | PL-259, not installed |
| Color/finish: | White |
| Polarity: | Vertical |
| Impedance: | 50 Ohms |
