Digital-Analog Broadband RF Wattmeter for 88MHz-1GHz, 5-500 Watt, N Females.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: 44DL
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking & Telecom Infrastructure
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Digital-Analod Broadband RF wattmeter for 88MHz-1GHz, 5-500 Watt, N Females.

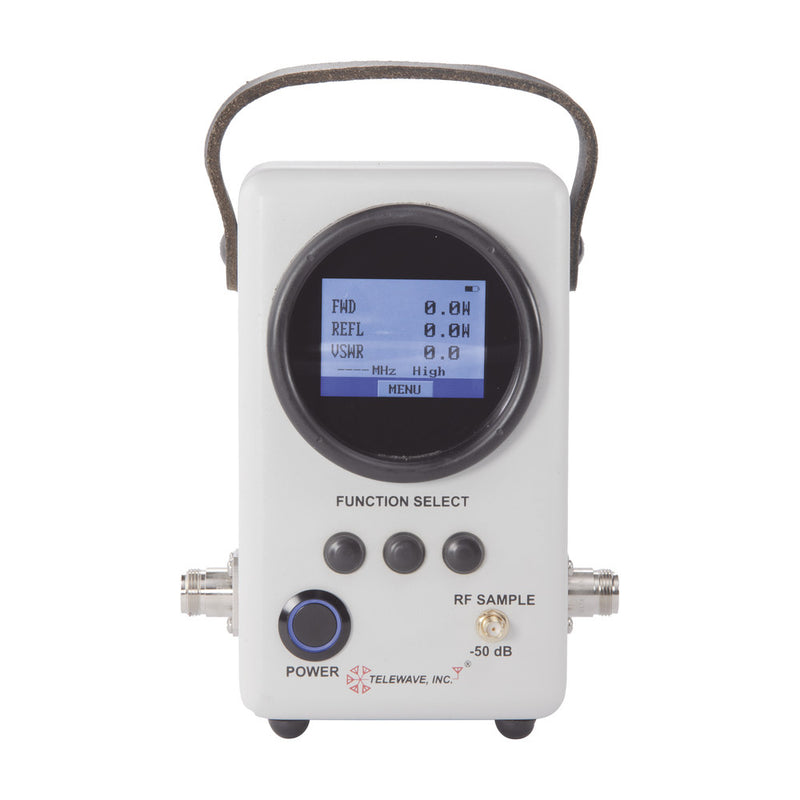

- The Telewave Model 44DL Broadband RF Wattmeter is a compact, versatile test instrument for the direct measurement of forward and reflected RF power in a coaxial transmission line under any load conditions.
- This meter is capable of accurately measuring legacy analog modulated signals as well as signals incorporating the newest digital modulation schemes.
- This meter does not require field calibration, frequency elements (slugs), or the use of correction tables at any temperature or frequency within specification.
The features of the 44DL include:
- Long life rechargeable batteries, re-charge via USB.
- -50 dB bi-directional sample/injection port, SMA Female connector only.
- Tough Metal case, shock mounted and recessed display.
- Large buttons that can be operated when wearing gloves.
Included accessories:
- Universal (wall wart) power supply 90 to 250 VAC in, USB 5 VDC out.
- Universal AC Plug Adapter Kit (IEC Type A Plug to Type C, G, or I Plug).
- USB type A to type B charging cable.
Specifications:
- Frequency range: 88-1000 MHz
- Calibration Cycle: Factory every one year.
- Battery Life: 8 Hours (after full charge).
- Connectors: N Female Standard.
- Impedancia: 50 Ohm.
- Power Range: 5-500 Watt (37 a 57 dBm).
- VSWR (Return Loss): <1.21:1 (> 20.5 dB).
- Accuracy to 1GHz (Proper cabling): ±6% ± 0.2W.
- Sample Port Insertion Loss: 50 dB ± 2 dB.
- Digital/Analog Modulation Support: CW = FM, NXDN (dPMR), NEXEDGE, IDAS, D-Star, Fusion, P25-I, DMR DL, P25-II DL, TDMA = DMR UL, P25 UL (Note: UL = Up Link ; DL = Down Link).
- Temperature Range (USB Conn): -4°F to 113°F.
- Dimensions (HWD): 6.75 x 5.50 x 4.00 inches.
- Shipping Dimensions: 10.00 x 8.00 x 6.00 inches.
- Meter Weight: 3 lb. (Shipping Weight: 4 lb).
