Wattmetro RF analogico/digital
- Brand / Vendor: TELEWAVE
- Hardware Model / MPN: 44D-LX
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radio Communication
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico

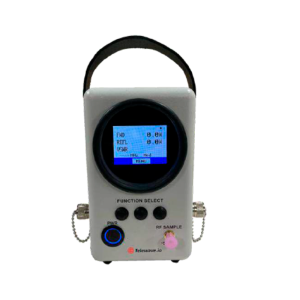

RF Broadband Power Meter 44D-LX
Telewave.io - Professional RF Measurement Solutions
The RF Broadband Power Meter 44D-LX from Telewave.io is a compact and versatile test instrument designed for direct measurement of forward and reflected RF power. Housed in a rugged enclosure, this meter is compatible with both traditional modulations (CW, FM, FSK) and modern digital formats (P25-P2, DMR, TETRA), requiring no field calibration or correction tables.
Key Features
- Long-lasting battery: Up to 8 hours operation with internal battery and 16 hours with optional external battery.
- USB-C port: For data transfer only.
- Built-in digital frequency counter: For precise frequency measurements.
- Wide compatibility: Supports both analog and digital modulations including TDMA and Quadrature.
- Included accessories: Universal power supply (90-250 VAC) and country-specific plug adapters.
Technical Specifications
Specifications
- Frequency range: 118 MHz - 960 MHz
- Measurement accuracy: ±0.4 dB (FM/FSK)
- Forward power range: 5 W - 500 W (37 dBm - 57 dBm)
- Reflected power range: Maximum 100 W (50 dBm)
- Insertion loss: < 0.1 dB (in-line)
- Sample port loss: 50 dB (nominal)
- Impedance: 50 ohms
- Weight: 3.5 lb (1.6 kg)
- Dimensions (HWD): 6.75' x 5.5' x 4.0' (17.14 x 13.97 x 10.16 cm)
Interfaces & Connectivity
- RF connectors: Thru-Line (TX & ANT) N-Female, Sample Port SMA-Female
- USB-C port: For data transfer
- Power supply: Universal 90-250 VAC, 8.4V DC
Note:
Device includes calibration certificate and complete user manual.
Applications & Use Cases
Telecommunications
Ideal for power measurements in land mobile radio (LMR) systems and modern networks with TDMA modulations.
Network Maintenance
Essential tool for technicians requiring precise RF power measurements in field operations.
Test Laboratories
Perfect for lab environments requiring reliable and repeatable measurements across wide frequency ranges.
