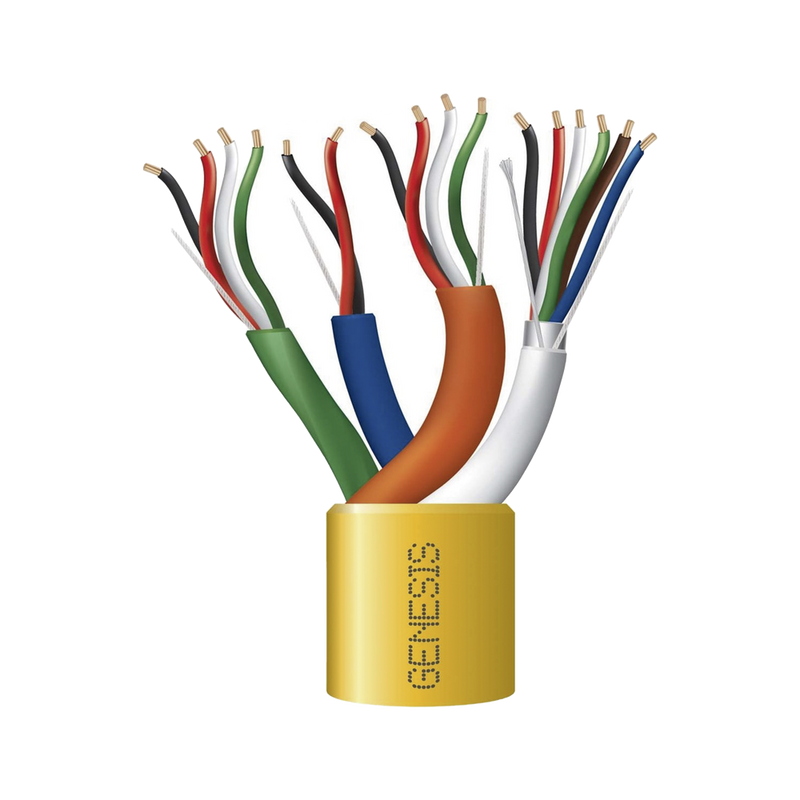

305-meter cable reel, yellow, made up of: 6 x 22 AWG shielded, 4 x 18 AWG, 4 x 22 AWG, and 2 x 22 AWG, for access control applications.
- Brand / Vendor: GENESIS
- Hardware Model / MPN: 2196-1002
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Composite cable for access control applications
Features
- Group of cables 1: 6 copper conductors., 22 gauge.
- Colors: Black, Red, Green, White, Blue, Brown., 22 gauge.
- Group of cables 2: 4 copper conductors., 22 gauge.
- Colors: Black, Red, Green, White.
- Group of cables 3: 2 copper conductors., 22 gauge.
- Colors: Black, Red
- Group of 4 wires: 4 copper conductors., 18 gauge.
- Colors: Black, Red, Green, White.
Applications
- Group 1: Proximity reader wiring
- Group 2: Exit button wiring
- Group 3: Door sensor wiring
- Group 4: Wiring of door strike
Mechanical Characteristics
- Operating temperature: -20 ° C to 75 ° C
- Operating voltage: Max. 300 Volts
Certifications:
- CMR
- CL3R
- FT4
- Weather-resistant
Packing
- 1000 ft / 305 meters.
