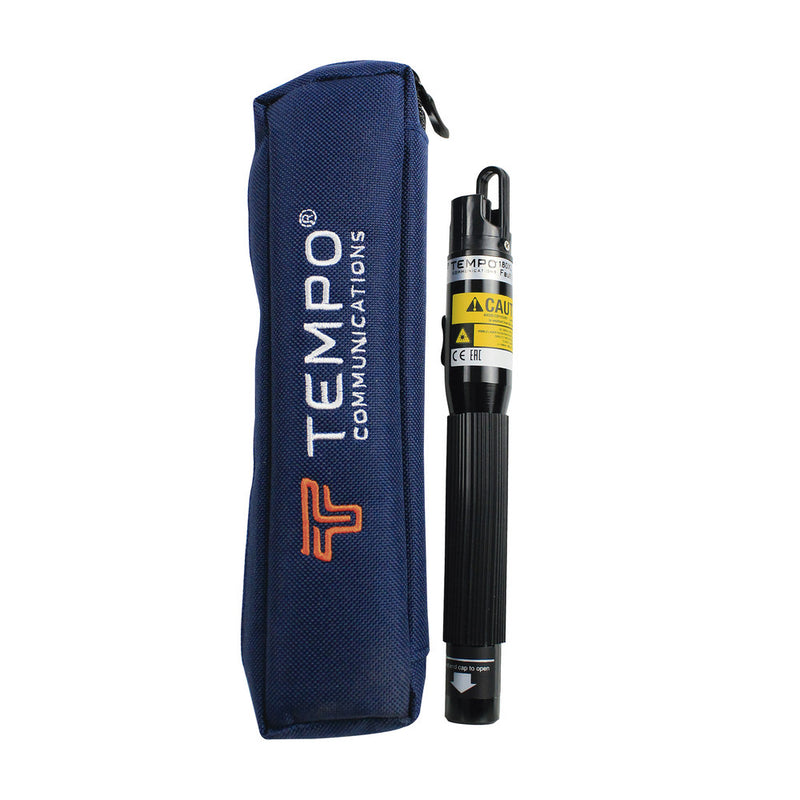

Visual Fault Locator for optical fiber testing, up to 7 kilometers
- Brand / Vendor: TEMPO
- Hardware Model / MPN: 180XL
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The 180XL visual fault locator allows the technician to quickly and safely visually locate broken and pinched fibers, faulty connectors, and bad splices. The long reach of the 180XL allows the technician to safely confirm fiber continuity up to distances of 7km as well.
Features:
- Visual fault locating
- Confirm fiber continuity
- Allows the technician to quickly locate faults without the use of more expensive equipment
- Class 2 designation provides safe light levels for the technician
- 7km distance
- Universal 2.5mm bulkhead
- Optional 1.25mm adapter available
- Class 2 certification, 0dBm output power
- Compatible with Singlemode and Multimode fibers
- 2Hz modulation mode
Specifications:
| Attribute Name | Attribute Value |
|---|---|
| Wavelength | 650nm +/-10nm |
| Output Power | 0dBm |
| Laser Classification | Class 2 |
| Modes | CW and 2Hz Modulation |
| Display | Red/Green LED |
| Fiber Type | Singlemode, Multimode |
| Connector interface | 2.5mm Universal, Optional 1.25mm adapter |
| Battery | AA (2 Included) |
| Battery Life | 80 Hours with 3.9Wh Batteries |
| Weight | 0.26lbs, (120g) (not including batteries) |
| Dimensions | 7.08” x 0.91” Dia (180mm x 23mm Dia) |
| Operating Temperature | -10ºC to +45ºC |
| Storage Temperature | -40ºC to +70ºC |
