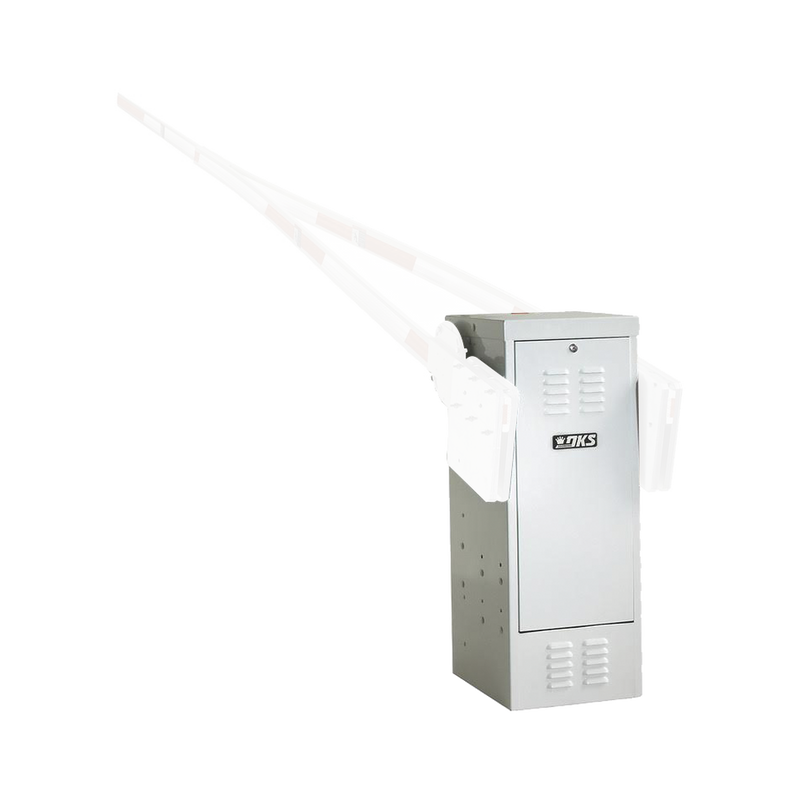

Barrier Gate 1HP/115 V up to 27 ft Arm / 1 HP Motor / 115 V Continuous Use
- Brand / Vendor: DKS DOORKING
- Hardware Model / MPN: 1602-090
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
The 1602 operator is designed for traffic lanes up to 27 feet wide in low-use commercial and industrial applications. This operator uses a counter-balanced three-piece wishbone-style arm assembly. The 1602 operator is designed to be mounted on either the left or right-hand side of the roadway. The operator can be equipped with a DC convenience open package (optional) that will automatically raise the arm in the event of a power outage.
- Magnetic limit control.
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.
- Left or right hand mount.
Specifications:
- 1 HP continuous-duty motor.
- 60:1 gear-box running in a continuous oil bath.
- 115, 230*, 460* VAC. (*230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)
- Arm rotates 90° in approximately 5.5 seconds.
- Class III and IV applications.
- Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)
- Dimensions (operator only): 15.25'W x 39.75'H x 15.75'D.
Note: Arm is not included in the box
Available arms:
Wood arm
1602-340 3-Piece, 20-Ft Wood (requires 1602-041)
1602-041 Hardware Kit for 1602-340
• Hardware kit includes arm mounting hubs, hardware, and counter-balance weights.
Aluminum arm
1602-162 3-Piece, 20-Ft Aluminum
1602-164 3-Piece, 24-Ft Aluminum
1602-166 3-Piece, 27-Ft Aluminum
1602-172 3-Piece, 20-Ft Aluminum Lighted
1602-174 3-Piece, 24-Ft Aluminum Lighted
1602-176 3-Piece, 27-Ft Aluminum Lighted
Notes:
• 1602-340 wood arm requires 1602-041 hardware kit.
• Aluminum arms include hardware kit.
Optional accessories:
- 1602-170 Manual Crank Kit
- Crank kit is a factory-installed option only
