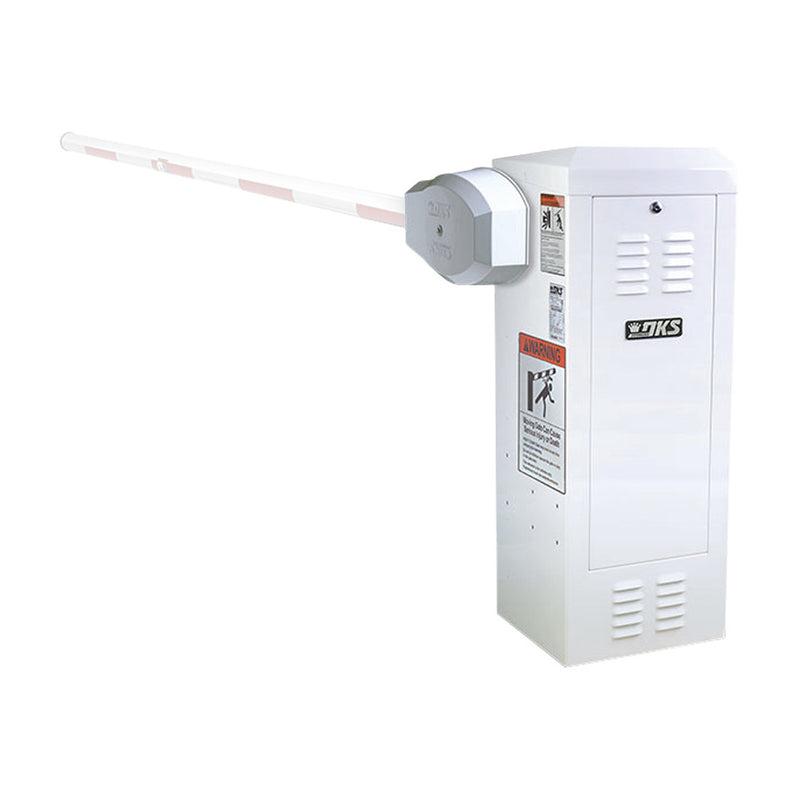

Barrier Gate operator, Continuous Intensive Use, Up to 13.12 ft (4 m) Lanes
- Brand / Vendor: DKS DOORKING
- Hardware Model / MPN: 1601-380
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
- Magnetic limit control.
- Ports for plug-in loop detectors.
- Automatic sequencing inputs for use with slide and swing gate operators.
- Up input memory buffer.
- Down memory option.
- Multiple up commands.
- Two convenience outlets.
- 360° gear box rotation.
- Gate tracker reporting output.
- Programming switches.
- Built-in power On/Off switch.
- Left or right hand mount.
- 1/2 HP continuous-duty motor.
- Supports arms of up to 13.12 ft (4 m)
- Power supply 115 Vac
- Dimensions: 387.35 x 1105 x 394 mm
- Current consumption: 5.4 Amp.
- Operation class II, III, and IV (UL 325)
- The left or right barrier is configurable in the field.
- 5-year warranty against manufacturing defects.
- Integrated on/off switch.
Vehicle Barrier for continuous use compatible with an arm of up to 13.12 ft (4 meters).
The model 1601-380 contains:
- 1/2 HP continuous-duty motor.
- White plastic mast cap.
Additional characteristics
- Program magnetic limits
- Two built-in mass sensor ports
- Programmable automatic closing
- Two built-in voltage outputs for the connection of accessories.
- 1/2 Hp motor for continuous use.
- Option for folding arm (purchased separately)
- White or Red/Green Illuminated Arm Options (Purchased Separately)
Additional notes:
- The arm and installation kit are purchased separately
- 5-year warranty against manufacturing defects.
What additional components should you quote to arm a complete system?
Step 1 Select a mast and installation kit
Octagonal arm without accessories 1601-555, requires an installation kit 1601-242.
Octagonal arm with reverse edge sensor 1601-555, requires an installation kit 1601-235 and a reverse edge sensor 8080-080.
Octagonal lighted arm with reverse edge sensor RED / GREEN 1601-555, requires installation kit 1601-235 and a lighted reverse edge sensor 8080-096
Octagonal arm with reverse edge sensor and breakaway system 1601-555, requires installation kit with breakaway system 1601-295 and a reverse edge sensor 8080-080
Octagonal lighted arm with reverse edge sensor RED / GREEN and breakaway system 1601-555, requires installation kit with breakaway system 1601-295 and a lighted reverse edge sensor 8080-096
Step 2 Choose optional accessories.
Mass sensor DKS original 9410-010, requires magnetic loop SYSLM6
3-push button control for vehicle access applications XBSSW01
Photoelectric detector with 22 ft (7 m) range XBSRR7
Security laser for vehicle access applications 10LZR-H100-KIT19327
Traffic light for Doorking barriers 1603-222
Additional Notes and Recommendations
- All components and accessories are sold separately.
- Vehicle access devices require installation by certified personnel.
- The 5-year warranty applies to models 1601-080.
- The warranty specifically covers damage and/or malfunction resulting from a manufacturing defect in the product.
- Any damage caused by improper operation or installation invalidates the product warranty policy.
- Compliance with the UL325 standard requires the use of additional safety devices. For more information, you can consult the following link UL 325, Safety Standard.
- In order to ensure better protection against electric shock, it is necessary to connect an Earth line to the designated terminals on the vehicle barrier and add a line protection device against electric shock.
