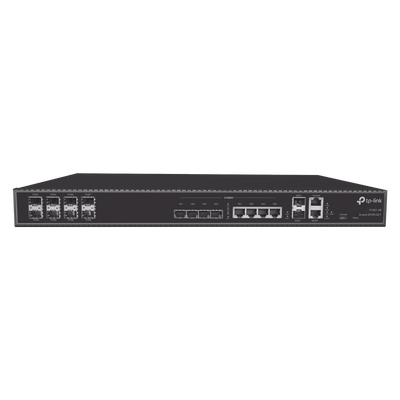

GPON Optical Line Terminal (OLT) for 1,024 ONUs, 8 SFP GPON ports, redundant power supplies
Key Technical Specifications & Features
- Brand / Vendor: TP-LINK
- Hardware Model / MPN: DS-P7001-08
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Networking
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$2,369.59
$2,961.99
Save: $592.40 (20% OFF)
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units
$2,369.59
Standard
5 - 9 units
$2,251.11
Save 5%
10+ units
$2,132.63
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$2,369.59
Standard Catalog
5 – 9 Units
$2,227.41
Save ~6%
10+ Units
$2,085.24
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
Brand: TP-LINK | Model / MPN: DS-P7001-08
Availability: Standard Supplier Lead Time
- Compact design provides more flexibility than large chassis for small and medium operators.
- Supports 1:128 splitting ratio, 1024 ONTs can be supported by one device;
- Dual redundant power supply design provides carrier-class reliability, supports AC, DC, or mixed power input.
- Complete L2 functions can meet requirements for different applications.
- Supports ITU-T G.984.4/G.988 standard OMCI, can manage ONTs remotely.
- Provides console and dedicated management port for out-of-band management.
- Supports SNMP, can be managed by TP-Link PON Element Management System.
Ports:
- Service ports: 8 PON ports.
- Uplink ports:
- 4 10/100/1000Mbps RJ45
- 4 1000Mbps SFP
- 2 10G SFP+ (optional)
- 1 RJ45 console port
- 1 RJ45 management port
PON Features:
- Compatible with ITU-T G.984.x, G.988 standards
- Standard OMCI management function
- Supports 1:128 splitting ratio for each PON port
- Maximum 20km PON transmission distance
- Supports AES 128 encryption for uplink and downlink data transmission.
- Downstream: 2.5 Gbps
- Upstream: 1.25 Gbps
- ONU authentication
Physical and Electrical Characteristics:
- Dual power supply
- Supports current AC, DC, AC + DC input
- Max. power consumption: 70W
- Weight: 4kg
- Dimensions: 440 mm (L) * 391 mm (W) * 44 mm (H)
- Power supply: AC: 90V ~ 240V, 50 / 60Hz
- DC: -36V ~ -72V
- Storage temperature: -40 °C ~ 85 °C
- Operating humidity: 5% ~ 90% non-condensing
- Storage humidity: 5% ~ 90% non-condensing
