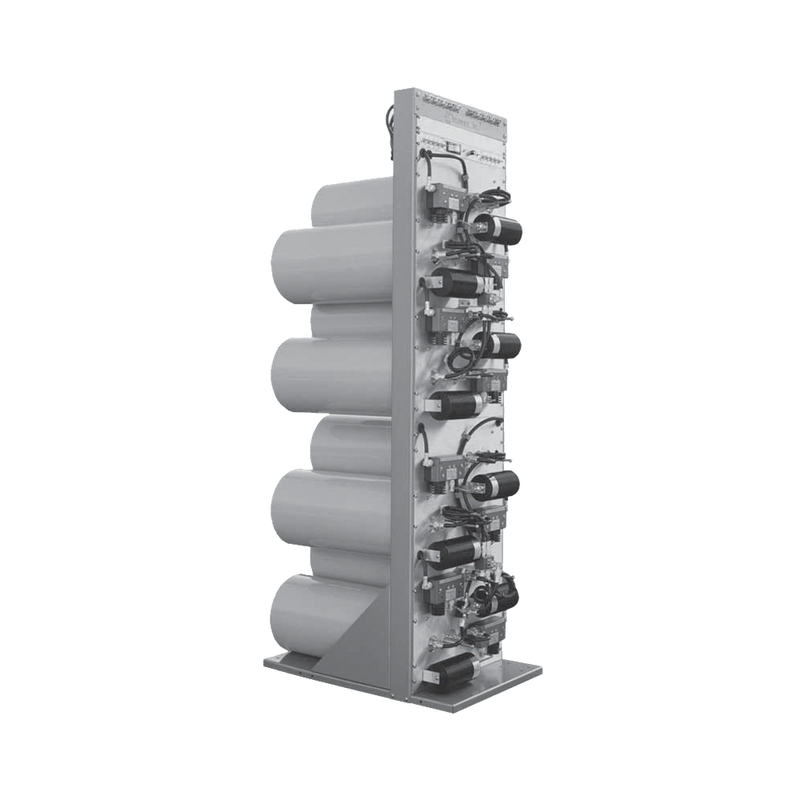

VHF Combiner for 148-174 MHz, 8 Channels, 105 kHz, 125 Watt, 19" Rack Mount, N-type Female.
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: M101-150-8TRM19
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: TELEWAVE, INC | Model / MPN: M101-150-8TRM19
Availability: Standard Supplier Lead Time
VHF Combiner, 8 Channels, 125 Watt, in 19" rack mount.
- Frequency Range: 144-174 MHz.
- Number of Channels: 8
- Wattmeter on front panel to input / output monitoring power.
- 19" Rack mount with 1/4 wave cavities.
- Insertion Loss (max.): 3.8 dB.
- Input Power: 125 Watt.
- Isolation TX-TX: 75 dB
- Isolation TX-Antenna: 55 dB.
- Separation TX-TX (min.): 105 kHz.
- Loads: 60 W second step isolator (100 W optional).
- Connectors: N Female (8), EIA 19" rack.
*Inquire for availability.
