Battery Isolator and an Automatic Charging Relay for 12/24 Vdc Vehicles
- Brand / Vendor: SAMLEX
- Hardware Model / MPN: ACR-160
- Deal Status: ⚡ Special Deal (15% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Energía y Electricidad
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: SAMLEX | Model / MPN: ACR-160
Availability: Standard Supplier Lead Time

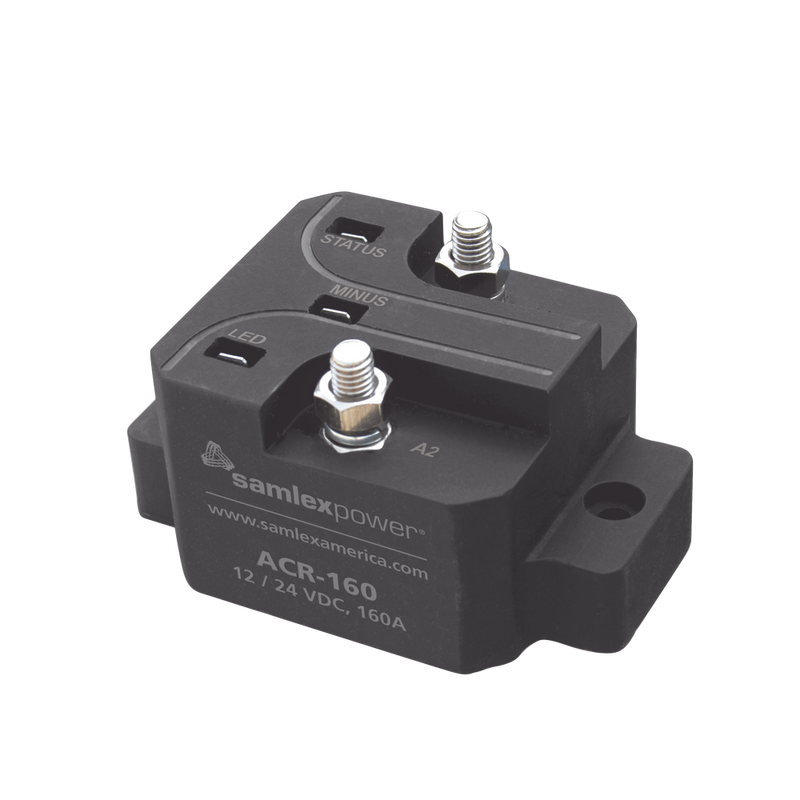

The ACR-160 microprocessor-controlled battery isolator is used in starter and auxiliary battery systems such as those in boats, RVs, and service vans. It monitors the starter's state of charge and, therefore, avoids starting problems.
Technical Specifications
Supply ....................... Automatic detection 12/24V
Max. current.....................................................160A
Peak current.......................... 480A for 250 milliseconds
Battery connection............................................ M8
Other connections.......................... Faston 6.3 mm
Cable cross-section...................................... 50mm²
Consumption OFF ..........12V=1.8mA / 24V=2.0mA
Consumption ON.........12V=340mA / 24V=170mA
Minimum charge time........................... 60 seconds
Dimensions: 106.4 x 73 x 57.2 mm / 4.2 x 2.9 x 2.3 in
Weight: 0.46 kg. / 1.0 lb.
