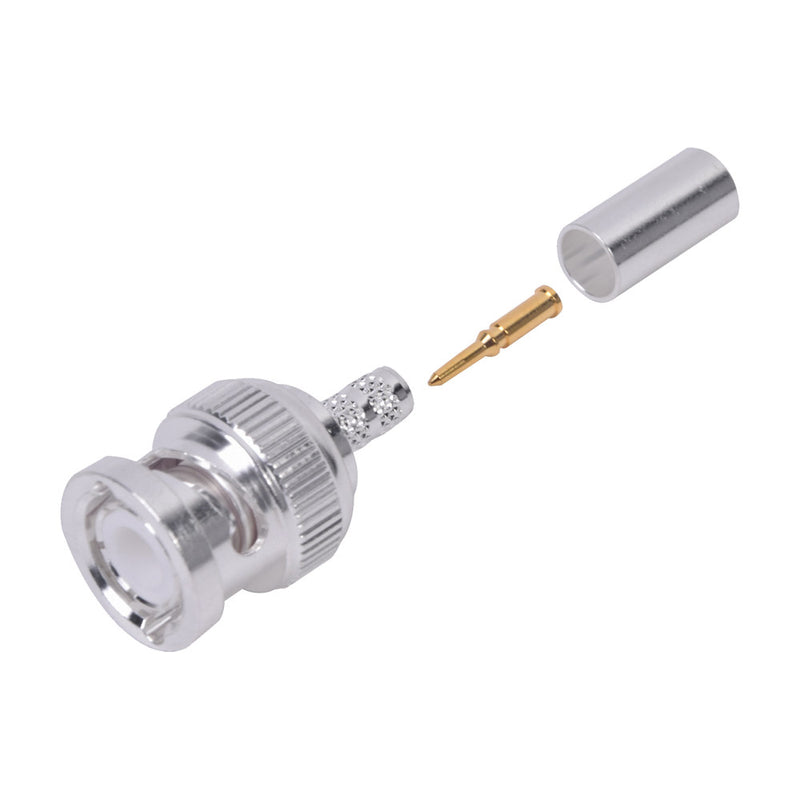

BNC Male Connector for crimping onto LMR-195, RG-58/U, and RG-142/U cables, Silver/Gold/PTFE.
- Brand / Vendor: RF INDUSTRIES,LTD
- Hardware Model / MPN: RFB-1106-2ST
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: RF INDUSTRIES,LTD | Model / MPN: RFB-1106-2ST
Availability: Standard Supplier Lead Time
General Overview
The BNC Plug Crimp connector is a reliable, high-quality solution for RF connectivity applications. Designed to deliver excellent performance, it features a 50 Ohm impedance and operates in a frequency range of 0-4 GHz with a maximum VSWR of 1.3. Its robust construction includes a silver-plated brass body and gold-plated brass pin, ensuring durability and superior conductivity. Suitable for RG-58 cables and similar, it supports a temperature range of -65°C to 85°C and complies with voltage standards of 500 V RMS at sea level.
- Type Recommended Cable: LMR-195, RG-58/U, RG-142/U.
Technical Specifications
- Impedance: 50 Ohms
- Frequency Range: 0-4 GHz
- VSWR: 1.3 Max
- Working Voltage: 500 V RMS @ sea level
- Temperature Range: -65°C to 85°C
- Body and Components: Silver-Plated Brass, PTFE, Rubber
Functionalities
- Applications: Suitable for RG-58, RG-141, Belden, and more
- Insulation Resistance: 5k M Ohms min.
- Crimp Die Recommendations: Pin .068', Ferrule .213'
- Various Dimensions: Max Diameter 0.570”
Advanced Specifications
- Connectors for RG-58, 141, and other specified cables
- Meets RF connectivity standards
- Applicable in environments from -65°C to 85°C
- Compatible with 500 V RMS @ sea level
Applications and Use Cases
- RF connectivity applications
- Interfaces for telecommunications cables
- Used in the electronics industry for system integration
