VHF Base Antenna, 148 - 154 MHz, 7 dB / Fiberglass / Self-Supporting
- Brand / Vendor: NUO NETWORKS
- Hardware Model / MPN: G7-150-1
- Deal Status: ⚡ Special Deal (17% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: NUO NETWORKS | Model / MPN: G7-150-1
Availability: Standard Supplier Lead Time
General Description
The G7-150 antenna series is ideally designed for fixed or repeater applications, offering low-angle radiation for optimal signal performance. Constructed with high-strength aluminum and fiberglass, it ensures a fully self-supporting design for exceptional durability.
Technical Specifications
Key Features
- Maximum Input Power: 800 watts FM
- Gain: 7 dBd
- VSWR: 6 MHz for 2:1; 3 MHz under 1.5:1
- Impedance: 50 ohms nominal
- Lightning Protection: Shunt Fed - Direct Ground
Functionalities
- Construction: Aluminum and Fiberglass
- Self-Supporting Design
Advanced Specifications
Interfaces and Connectivity
- Termination: Type N Female
Requirements and Compatibility
- Mounting: Up to 2 inches
- Length: 15 feet 4 inches
- Weight: 10 lbs
- Wind Survival: 100 mph
- Equivalent Flat Plate Area: 1.16 ft²
- Side Force: 46 lbs at 100 mph
Applications and Use Cases
Ideal for fixed and repeater installations requiring high durability and efficient signal transmission.

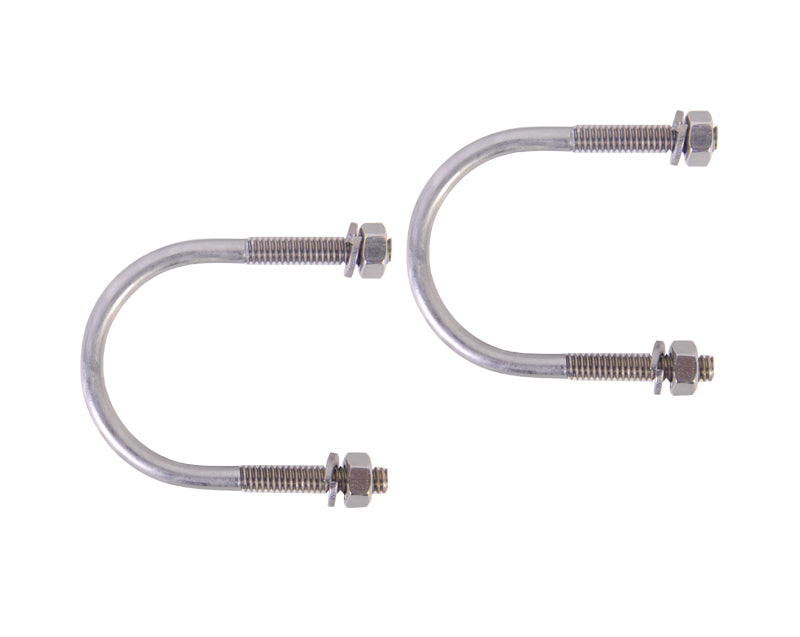

Includes accessories for mounting on a mast with a 1 1/2' diameter.
