Item#: M101-450-5TRM-3Q Browsing History
TELEWAVE, INC »

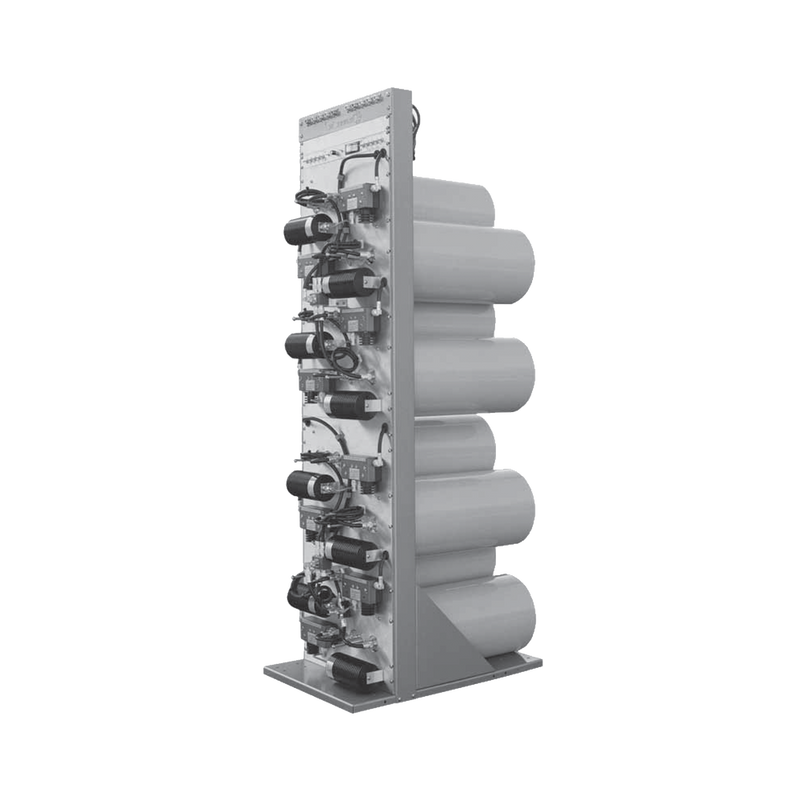

Hi-Q Combiner on 19" Rack, 400-512 MHz, 5 Channels (10" Diam.), 150 KHz Sep, 150 Watt, N-Female.
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All TELEWAVE, INC Products
⚡ SPECIAL DEAL • 8% OFF • Direct EPCOM USA Warehouse Stock

Hi-Q Combiner on 19" Rack, 400-512 MHz, 5 Channels (10" Diam.), 150 KHz Sep, 150 Watt, N-Female.

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: TELEWAVE, INC
  • Hardware Model / MPN: M101-450-5TRM-3Q
  • Deal Status: ⚡ Special Deal (8% OFF)
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Structured Cabling
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
⚡ SPECIAL DEAL 8% OFF
Deal expires in: 00:00:00
EPCOM Official Warehouse Promotional Price
$21,994.79 $23,865.87
Save: $1,871.08 (8% OFF)
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units $21,994.79 Standard
5 - 9 units $20,895.05 Save 5%
10+ units $19,795.31 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$21,994.79
Standard Catalog
5 – 9 Units
$20,675.10
Save ~6%
10+ Units
$19,355.42
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing


     Hi-Q Combiner, 400-512 MHz, 5 Channels (10" Dia.), 150 KHz (min.), N Females.

  • Frequency Range: 400-512 MHz.
  • Number of Channels: 5.
  • Cavity Size: 10" Diameter, 3/4 Wave.
  • Channel Separation (min): 150 kHz (175 kHz, typ.).
  • Input Power (max): 150 Watts per Channel.
  • Impedance / Input VSWR (typ.): 50 Ohm / 1.25:1
  • Insertion Loss per ch. (typ): 2.0 dB at 150 kHz. Spacing.
  • TX-to-TX Isolation (typ.): 80 dB.
  • Antenna to TX Isolation (typ.): 75 dB.
  • 2nd Harmonic Suppression (typ.): 90 dB.
  • Operating Temperature: -30ºC to + 60ºC.
  • Mounting / Connectors: 19" Rack Mount / N Female.
  • Dimensions (H x W x D): 84 x 20 x 26 in.
  • Weight: 250 lbs.

       *Inquire about lead time.
