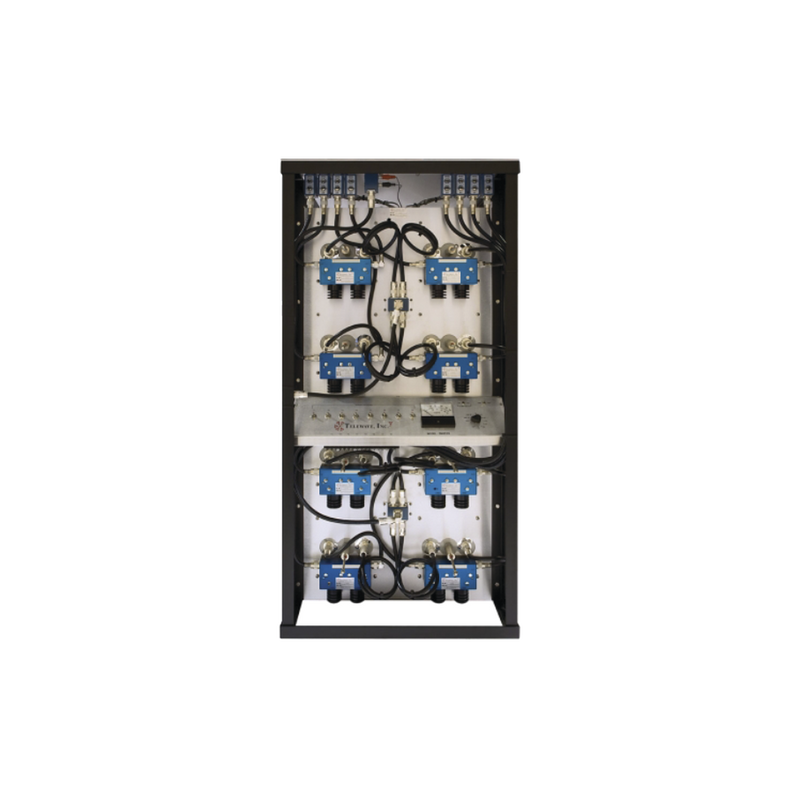

UHF Combiner on 24" Rack, 400-512 MHz, 4 Ch. (10" Dia.) 250 KHz Tx-Tx, Pwr.-Monitor, 150 Watt, N Females.
Key Technical Specifications & Features
- Brand / Vendor: TELEWAVE, INC
- Hardware Model / MPN: M101-450-4TRM
- Deal Status: ⚡ Special Deal (8% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Structured Cabling
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
$19,280.72
$20,920.92
Save: $1,640.20 (8% OFF)
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units
$19,280.72
Standard
5 - 9 units
$18,316.68
Save 5%
10+ units
$17,352.65
Save 10%
Guaranteed Safe & Secure Checkout
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$19,280.72
Standard Catalog
5 – 9 Units
$18,123.88
Save ~6%
10+ Units
$16,967.03
Save ~12%
Need an official corporate quote or net terms?
Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks
Shipped by: Nuo Networks
Combiner on 24" Rack, 400-512 MHz, 4 Channels, 250 kHz, 150 Watt, N Female.
- Frequency Range: 400-512 MHz.
- Number of Channels: 4.
- Cavity Size: 10" Diameter (1/4 Wave).
- Wattmeter Panel for Forward or Reverse Power Measurement.
- Channel Separation (min): 250 kHz.
- Input Power (max): 150 Watts per Channel.
- Impedance / Input VSWR (typ.): 50 Ohm / 1.25:1
- Insertion Loss per Ch. (typ): 2.8 dB at 275 kHz Spacing.
- TX-to-TX Isolation (typ.): 80 dB.
- Antenna to TX Isolation (typ.): 75 dB.
- 2nd Harmonic Suppression (typ.): 90 dB.
- Operating Temperature: -30ºC to + 60ºC.
- Mounting / Connectors: 24" Rack Mount / N Female.
- Dimensions (H x W x D): 48 x 24 x 24 in.
- Weight: 150 lbs.
