96-Fiber ADSS Singlemode Fiber Optic Cable - OS2 Aerial, 3,280 ft (1 km) Reel, 328 ft (100 m) Span, UV-Resistant Outdoor Jacket
- Brand / Vendor: LINKEDPRO BY FIBERHOME
- Hardware Model / MPN: OC-ADSS-96C-S100
- Deal Status: ⚡ Special Deal (17% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: CCTV & Video
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: LINKEDPRO BY FIBERHOME | Model / MPN: OC-ADSS-96C-S100
Availability: Immediate Dispatch from USA Warehouses

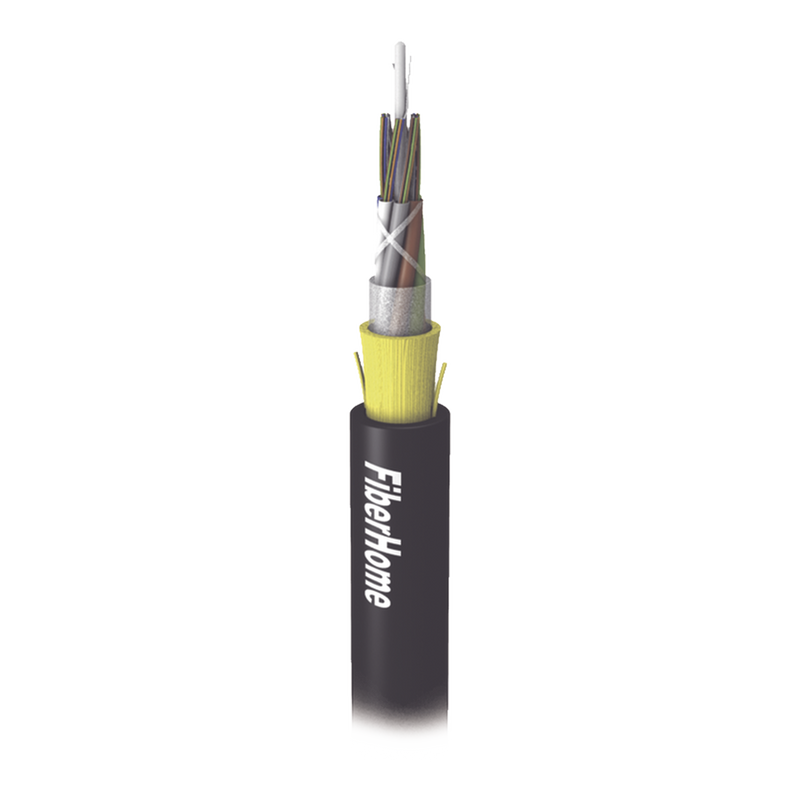

96-Fiber ADSS Optical Cable – High-Capacity Utility Aerial Solution
The All-Dielectric Self-Supported (ADSS) fiber optic cable from LinkedPro by FiberHome is engineered for high-capacity aerial installations. Its non-metallic design eliminates lightning risk and is specifically rated for deployment near high-voltage electrical utility lines.
Reinforced with aramid yarn and a UV-resistant HDPE (High-Density Polyethylene) outer jacket, this 96-fiber cable is optimized for GPON feeder networks, providing superior mechanical performance and moisture protection in demanding outdoor environments.
Product Overview
Designed for high-density aerial spans. The aramid reinforcement ensures high tensile strength without the need for a messenger wire.
- High Capacity: 96 fiber strands.
- All-Dielectric: No metallic elements.
- Safety: 110 kV Anti-Tracking rated.
- Protection: UV & moisture resistant HDPE.
Technical Specs
- Fiber Type: Singlemode G.652D.
- Maximum Tension (MAT): 472 lbf (2100 N).
- Crush Resistance: 225 lbf / 4 in (1000 N / 10 cm).
- Max Applied Voltage: 110 kV.
- Span (Distance): 328 ft (100 m).
- Jacket Material: Black HDPE.
- Internal Strength Member: FRP + PE.
Physical Properties
- Nominal Diameter (D): 0.45 in (11.6 ± 0.5 mm).
- Operating Temp: -4°F to +149°F (-20°C to +65°C).
- Nominal Weight: 358 lbs/mile (101 ± 15 kg/km).
- Reel Length: 3,280 ft (1 km).
- Max Wind Speed: 25 m/s (no ice load).
- Fiber Count: 96-Fiber.
- Application: Utility-Grade Aerial Feeder.
