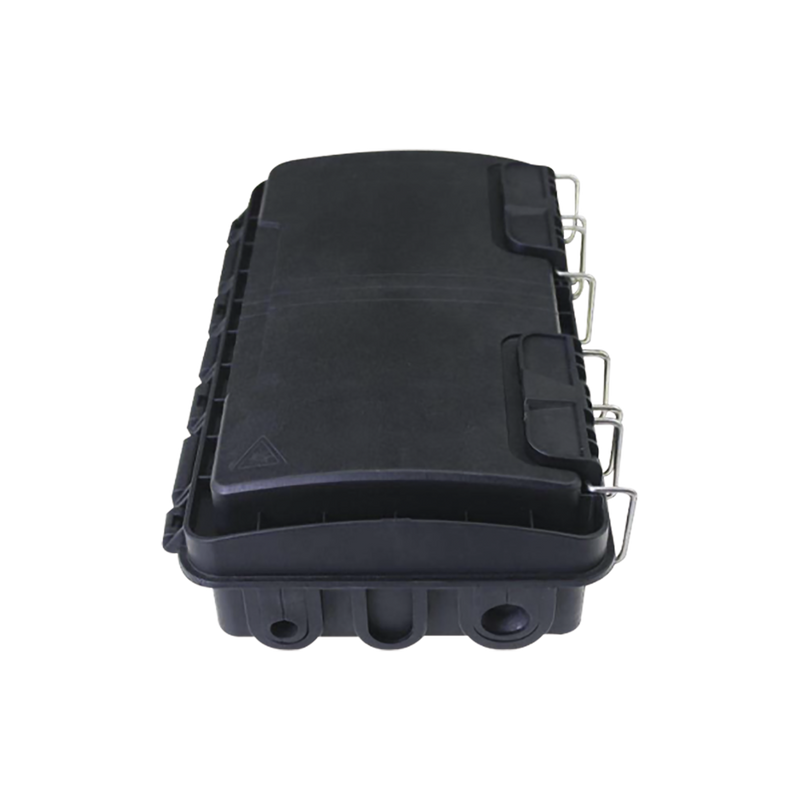

Fiber termination box, 16 ports, IP65, loaded with 1x8 SC/APC splitter G657A1, 900 μm, 8 SC/APC adapters.
- Brand / Vendor: LINKEDPRO BY EPCOM
- Hardware Model / MPN: LP-FAB-HGT-16IN/AS8
- Deal Status: ⚡ Special Deal (14% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Electronics Accessories
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: LINKEDPRO BY EPCOM | Model / MPN: LP-FAB-HGT-16IN/AS8
Availability: Immediate Dispatch from USA Warehouses
CHA21FO/215049-linkedpro_banner_fftx.png)
LinkedPro Fiber Splitter Box provides a high-density wall-mounted, pole-mounted, and aerial-mounted solution for next-generation networks, which aims to provide and manage fiber splitters in a limited space.
- The product is made of high-quality impact-resistant plastic and has a standard user interface that can be re-opened.
- Can accommodate two 1×8 PLC splitter LGX modules or steel tube type; includes 1x8 splitter.
- Anti-ultraviolet, anti-impact, and waterproof function.
- Unique flip board, flip angle ≥ 180°; the fusion area and distribution area are more clearly defined, reducing cable crossover.
- Fiber optic cable can enter and exit the box without cutting the cable.
Specifications:
- Dimension (in): 11.2 x 6.9 x 4.3
- Dimension (mm): 285 * 175 * 110
- Cable diameter (mm): Φ7-Φ18
- Dimension: 2 x 0.4 x 0.3 in / 52 x 9 x 8.1mm
- Inlet Ports:
- Port 1: 6 ~ 9mm
- Port 2: 9 ~ 12mm
- Port 3: 12 ~ 15mm
- 6 ports in total (3 ports on each side of the box)
- Max. Split ratio: 2pcs 1×8 steel tube splitter
- Max. Adapter capacity: 16pcs
- Max. Splice tray: 1pc
- Max. Fusion splice: 24 cores
- Outlet Ports:
- 16 ports in total for 2x3mm drop cable
- (8 ports on each side of the box)
