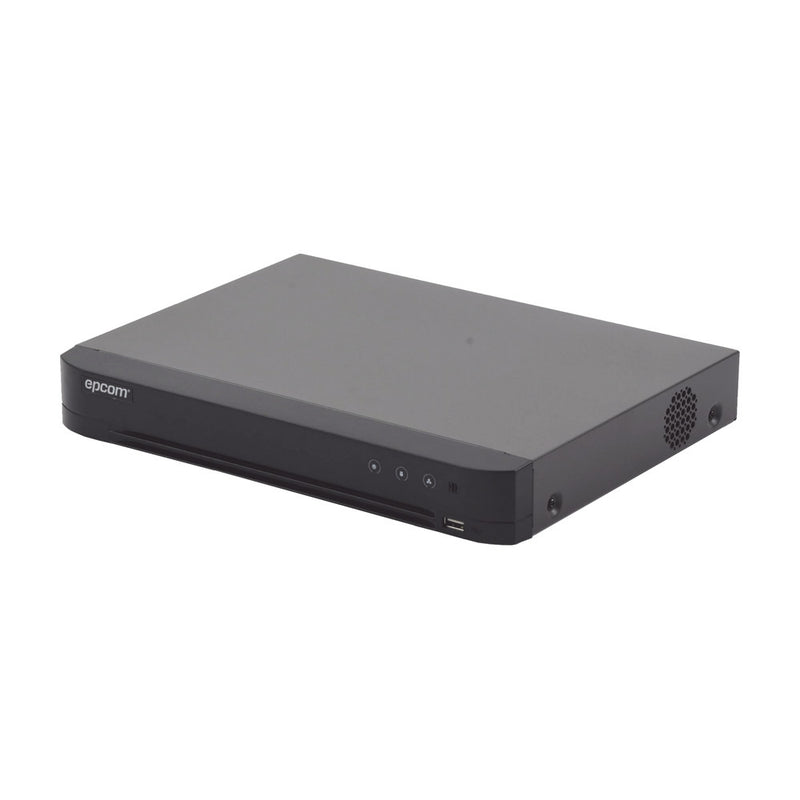

5 Megapixel / 3K Lite / 4-Channel TURBOHD DVR + 2 IP Channels / 1 Hard Drive Bay / Coaxitron Audio / False Alarm Reduction / Full HD Video Output
- Brand / Vendor: EPCOM PROFESSIONAL
- Hardware Model / MPN: EV-4004TURBO-D
- Deal Status: ⚡ Special Deal (17% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: CCTV & Video
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Important note:
Thanks to the new upgrades (improvements), the DVR now allows for 5 Megapixel TURBOHD cameras to be used where it was originally dedicated to supporting 3 Megapixels; the DVR will be able to record at 5 Megapixel Lite, meaning it is a signal coupling that allows for 5 Megapixel TURBOHD cameras with Lite recording.
- 5 Megapixel Real = 2560 X 1940.
- 5 Megapixel Lite = 1280 X 1940.
- Turbo HD Version 5.0 Series
- Allows TURBOHD analog channels to be turned off and IP cameras to be placed on all channels; up to 6 IP cameras can be placed in total. For each TURBOHD analog channel that is turned off, an additional IP channel is generated.
- DVR: HD-TVI / HD-CVI / Analog / IP / AHD.
- Remote access: PC (WINDOWS / MAC), Smart Phone (iPhone, iPad, Android).
- Compatibility with Internet Explorer browser.
- Multi-site client software up to 64 channels (iVMS-4200).
- Hik-Connect P2P.
- DDNS Service Hik-Connect Domain / DynDNS.
- Advanced Functions: Line Crossing Detection & Intrusion Detection.
- 1 audio input and 1 audio output.
- Supports 1 HDD up to 10 TB (not included).
- Serial interface: RS-485 (HIKVISION C, COAXITRON, PELCO D, PELCO P, etc).
- Power supply: 12 Vdc (power supply included).
- Consumption without HDD: 18 watts.
- Operating temperature: -10 ºC to 55 ºC.
- Dimensions: 315 x 242 x 45 mm (W × D × H)
- Weight: 1.78 Kg without HDD.
- Warranty: 5 Years.
Compression and resolution:
- H.265+ / H.265 / H.264+ / H.264.
- 4 TURBOHD / analog channels + 2 IP channels = 6 channels in total.
-
Supports 5 Technologies (TVI / AHD / CVI / CVBS / IP):
- 5 Megapixel Lite @ 15 FPS
- 3K Lite @ 15 FPS
- 4 Megapixel Lite @ 15 FPS
- 3 Megapixel @ 15 FPS
- 2 Megapixel @ 30 FPS
- 1 Megapixel @ 30 FPS
- Analog 1200TVL (CVBS) @ 30 FPS
- IP up to 6 Megapixel
- Note: Accepts 4MP, 2MP, and 1MP cameras on all BNC channels (3MP cameras only on channel 1).
The DVR supports 2 channels of video with activation of human body detection or vehicle detection; this allows us to be more accurate when downloading any recording to avoid other types of movements.
It is necessary to consider which of the analytics will be used since it is not possible to use both at the same time. When activating human body detection, it is not possible to activate vehicle detection and vice versa.
Supports audio on all its channels via coaxitron using cameras with integrated audio.
To use 2-way audio, it is recommended to place a microphone in the audio input; a camera with coaxial audio is not recommended for 2-way audio.
AcuSense equipment can filter out up to 95% of false alarms; the effectiveness of the filtering depends on the distance - viewing angle of the target and the camera. Some pets or insects can generate alerts based on the above.
SensePlus Technology
SensePlus technology is based on EPCOM's Deep Learning algorithm. Deep Learning algorithms are much deeper than conventional intelligent algorithms, which only operate superficially. They perform feature learning, providing amazingly accurate and consistent video content analysis (VCA) performance.
SensePlus is able to differentiate, with high accuracy, a human body and a vehicle in a scenario with a large number of objects. Not only can it detect human and vehicle intrusion, but it can also filter out false alarms that may have been triggered by moving objects that do not present a risk.
The technology also provides a powerful and fast target search function that is able to analyze recordings and select all human or vehicle images that are linked to the related video clip.
