Kit de Transceptores (Baluns) con TERMINALES DE TORNILLO, Resolución 4K, COAXIAL Blindado / COAXITRON / AUDIO POR COAXITRON / Menú OSD / Conector 100% COBRE / Calidad PREMIUM
- Brand / Vendor: EPCOM TITANIUM
- Hardware Model / MPN: TT-101-F-TURBO-S
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Radios & Walkie Talkies
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: EPCOM TITANIUM | Model / MPN: TT-101-F-TURBO-S
Availability: Standard Supplier Lead Time
TT101FTURBOS

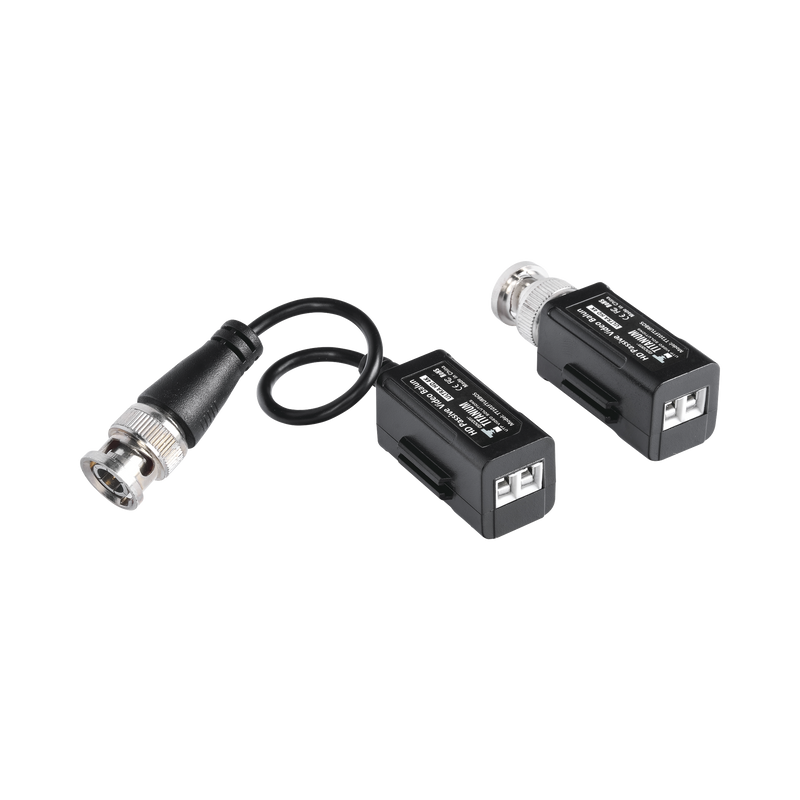

Passive Video Transceiver Kit (Balun)
The TT-101-FTURBOS video balun is a passive device that allows real-time transmission of HD CCTV video signals through twisted pair cable. It features copper connectors that offer greater conductivity, better performance in high frequencies (HD Video and long distances), and much lower attenuation. Some of the main advantages of this equipment is that it has a built-in solid-state TVS (Transient Voltage Suppressor) for surge protection, it is antistatic, offers Grade 3 lightning protection, 60 dB noise and crosstalk immunity, and exceptional interference rejection. It is compatible with all HD-TVI/CVI/AHD/CVBS analog cameras and widely used in CCTV cameras, monitors, DVRs, switches, IP encoders, and other CCTV equipment. It has screw-type terminals and one of the transceivers has a pigtail for easy connection to the DVR. Definitely a premium piece of equipment; the competition does not offer so much in their products.
Main Features:
- Passive transceiver kit with screw-type terminals.
- Compatible with cameras with HD-TVI / HD-CVI / AHD / CVBS technology
- Compatible with analog cameras (CVBS)
- Supports Coaxitron, Audio via coaxitron, and OSD menu
- Real-time transmission via UTP cat 5e/6/6A/7 cable
- Anti-static wave filter design
- Compatible video formats NTSC, PAL, SECAM
- 75 ohm impedance
- Male BNC connectors
Physical and Electrical Characteristics:
- No power required
- Dimensions: 42.4(L) x 17.8(W) x 17.4(H) mm (BNC connector excluded)
- Weight: 40 grams
- Operating temperature: -20°C to 70°C
- Storage temperature: -40° ~ 150°C
- Relative Humidity: 0~95% (non-condensing)
- ABS housing
- Black color
- 1-year warranty for manufacturing defects
Highlighted Features:
- 60 dB noise and crosstalk immunity.
- Exceptional interference rejection
- Built-in surge protection
- Built-in solid-state TVS (Transient Voltage Suppressor).
- Transmission of 150 meters (492 ft) for TurboHD in 4K
