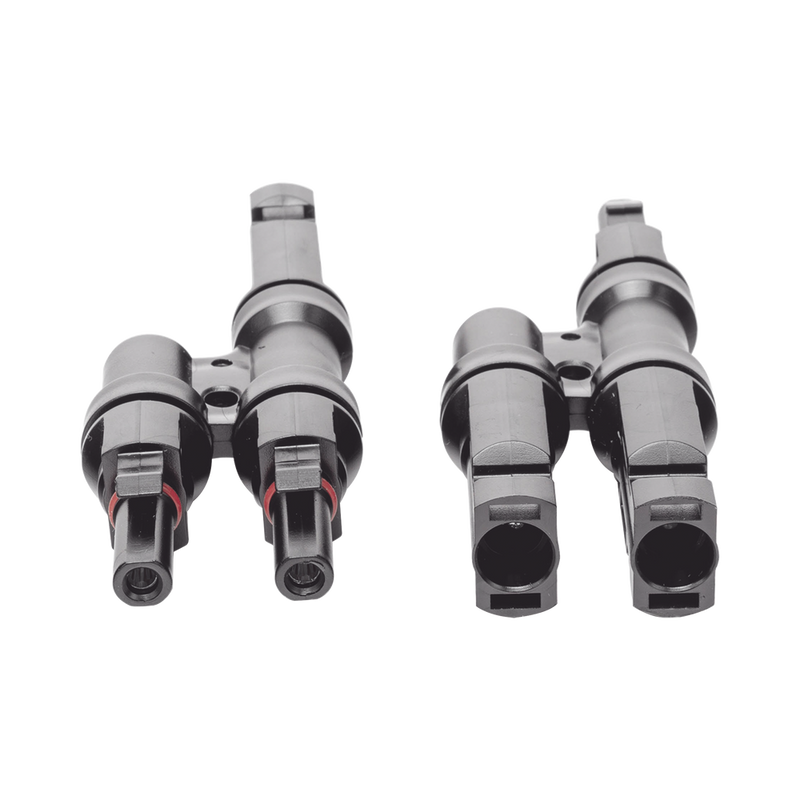

MC-4 Connector for Photovoltaic Modules
- Brand / Vendor: EPCOM POWERLINE
- Hardware Model / MPN: PROSECB-02
- Deal Status: ⚡ Special Deal (20% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Energía y Electricidad
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: EPCOM POWERLINE | Model / MPN: PROSECB-02
Availability: Standard Supplier Lead Time
MC4 type connectors for Photovoltaic Modules
With excellent UV resistance, allowing it to be used in harsh environments. The cable connection is easy to install and functions as a lock to prevent faulty contacts.
Technical Specifications:
• Max. operating voltage: 1000 VDC
• Nominal current: 30 A
• Flame class: UL94-V0
• Pollution degree: 2
• Contact resistance: ≤5 mΩ
• Protection degree: IP67
• Connection line specification: 4 mm²
• Ambient temperature range: -40 ~ 85ºC
• Safety level: Class II
• Insertion force: ≤50 N
• Extraction force: ≥50 N
