Amplificador de señal celular de alta potencia. Especial para crear una zona celular en áreas rurales o comunidades remotas. Ganancia de 95 dB, potencia de 20 vatios, banda de frecuencia de 1900 MHz. Hasta 3.11 millas lineales de cobertura.
- Brand / Vendor: EPCOM
- Hardware Model / MPN: EP-OA1995-20W
- Deal Status: ⚡ Special Deal (15% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Electronics Accessories
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
Brand: EPCOM | Model / MPN: EP-OA1995-20W
Availability: Standard Supplier Lead Time
RF repeater is a bi-directional signal amplifier that receives a weak signal, amplifies, and retransmits it at a stronger signal level or through the other side of an obstruction. With the usage of repeaters, weak signals can cover longer distances, providing more cost-effective cellular network optimization and expanding larger coverage areas.
The EP-OA1995-20WB repeater coverage distance can be from 500 meters to 5 Km; the length, as well as at the indoor equipment, is a total system gain function, the antenna height above the ground level, the topography, landscaping bushes, and trees.

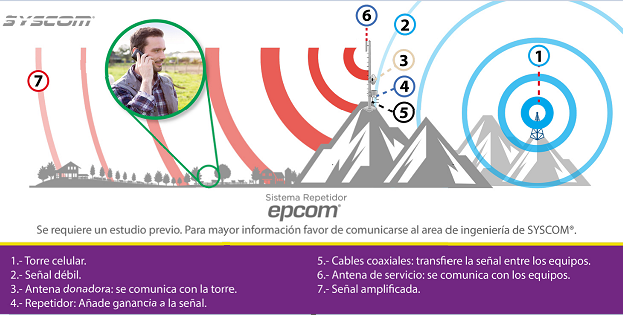

The service antenna is mounted on top of the tower, and the donor antenna on the 20 to 30 meters nearby. Sometimes, the spread area is improved when the positions are inverted.
It is highly recommended to install antennas with the most possible gain.
- Frequency range: 1850 ~ 1895 MHz Uplink and 1930 ~ 1975 MHz Downlink.
- Bandwidth: 25 MHz.
- Gain: 95 dB.
- Output maximum power: 43 dBm (20 W) Downlink and 33 dBm (2 W) Uplink.
- Connectors: N-Female type.
- Power supply: 110 VAC.
- Dimensions: 12.91 x 16.85 x 6.88” (328 x 428 x 175 mm).
- Weight: 33.06 lb (15 Kg).
Authorization from the frequency holder is required for the installation and operation of this equipment. The owner and installer are solely responsible for the operation of this signal amplifier.
