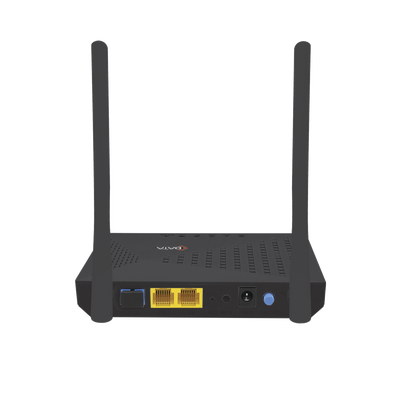

Item#: FD512XW-X(BC) Browsing History
CDATA »
DUAL ONU G/EPON, + 1 x FE + 1 GE + WI-FI 2.4 GHz, / High performance CPU, up to 300Mbps, GPON: Up to 2.488Gbps/1.244Gbps, SC/UPC (Black Series)
Ask AI Mode (Technical Hardware Assistant) Launch AI →
Shop All CDATA Products
⚑ SPECIAL DEAL • 20% OFF • Direct EPCOM USA Warehouse Stock

DUAL ONU G/EPON, + 1 x FE + 1 GE + WI-FI 2.4 GHz, / High performance CPU, up to 300Mbps, GPON: Up to 2.488Gbps/1.244Gbps, SC/UPC (Black Series)

| Write a Review
Key Technical Specifications & Features
  • Brand / Vendor: CDATA
  • Hardware Model / MPN: FD512XW-X(BC)
  • Deal Status: ⚑ Special Deal (20% OFF)
  • Condition: 100% Brand New, Factory-Sealed Commercial Gear
  • Category: Networking
  • Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
  • Binational Availability: Commercial procurement ready for USA and Mexico
⚑ SPECIAL DEAL 20% OFF
Deal expires in: 00:00:00
EPCOM Official Warehouse Promotional Price
$23.19 $28.99
Save: $5.80 (20% OFF)
Temporarily Out of Stock
Volume Contractor Pricing:
1 - 4 units $23.19 Standard
5 - 9 units $22.03 Save 5%
10+ units $20.87 Save 10%
Order by Phone: +1 (888) 306-4555 (24/7 Toll-Free)
Guaranteed Safe & Secure Checkout
VISA Mastercard AMEX Discover Apple Pay Google Pay PayPal
100% Factory Sealed Genuine Hardware
Official Manufacturer Warranty Included
30-Day RMA Hassle-Free Return Window
Free Shipping on orders over $500
Want it delivered by Calculating...?
Order within 00h 00m for Same-Day Priority Dispatch from Texas & Florida Hubs.
B2B VOLUME PRICING
Tiered Project Pricing & Bulk Discounts
1 – 4 Units
$23.19
Standard Catalog
5 – 9 Units
$21.80
Save ~6%
10+ Units
$20.41
Save ~12%
Need an official corporate quote or net terms? Delaware C-Corp & Mexican S.A. de C.V. invoicing available.
Request Commercial RFQ
Sold by: Nuo Networks Shipped by: Nuo Networks
Price alert Report listing

Brand: CDATA | Model / MPN: FD512XW-X(BC)

Availability: Standard Supplier Lead Time

Β

EPON/GPON Wi-Fi 2.4 GHz ONU

Up to '300 Mbps' via Wi-Fi

  • 1 10/100 RJ45 + 1 10/100/1000 RJ45 port
  • 1 PON SC/UPC port
  • Supports EPON PX20 / GPON Class B+
  • Optical receiving sensitivity: ≀-28dBm
  • Distance of 12.4 miles (20 km)
  • 2 external antennas with 5dBi gain
  • Wi-Fi standards IEEE802.11b/g/n
  • Power: 17dBm
  • MIMO
  • Local management software.
  • Remote management software.
  • Management via Android APP.

Β

Main features:
  • Dimensions: 7.3" x 4.7" x 1.3" / 185mm Γ— 120mm Γ— 34mm (Length Γ— width Γ— height)
  • Maximum consumption: ≀6W
  • Management: WEB, Telnet, CLI.
  • Multiple SSID
  • Wavelength: Tx 1310 nm, Rx 1490 nm / Tx 1490 nm, Rx 1550 nm
Physical and Electrical Characteristics:
  • Power supply 12 VDC, 1 A (Includes DC power supply).
  • 2 RJ45 ports
  • Wi-Fi 2.4 GHz
  • Operating temperature: -30 Β°C ～ +50 Β°C
  • Storage temperature: -30 Β°C ～ +70 Β°C
Network Features:
  • 1 Gigabit Ethernet Port + 1 Fast Ethernet RJ45 Port
  • Supports IGMP Snooping
  • Supports VLAN Tag / Untag
  • IPv4/IPv6
  • Supports DHCP / PPPOE / Static IP
  • Bridge mode or router mode
Β

Β

Application diagram

Β

Β

Β
