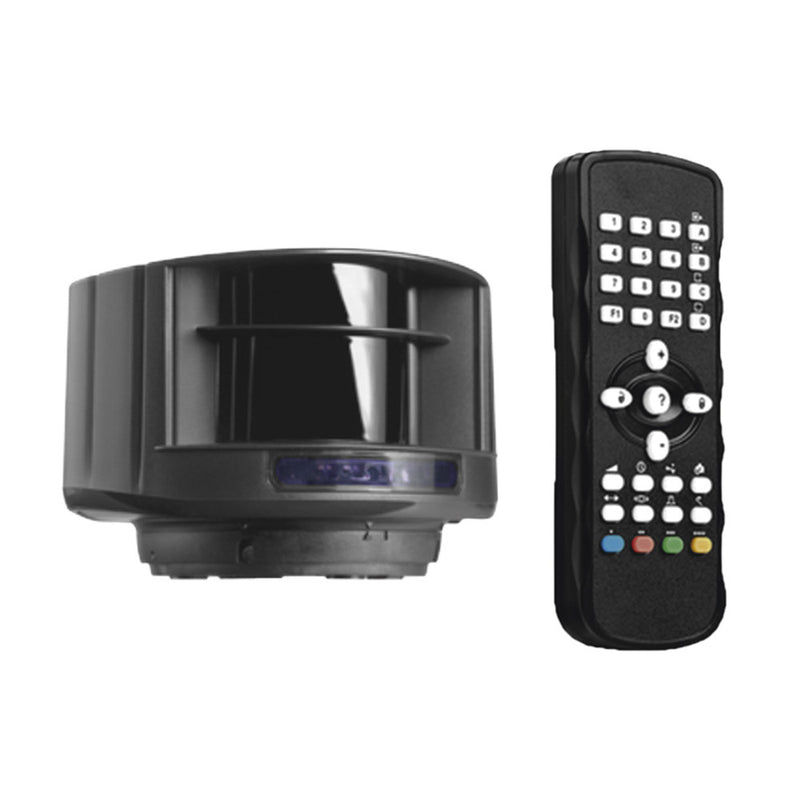

Laser Sensor and Remote Control Kit / Avoid the use of magnetic loops / Protects lanes up to 31ft wide and 31ft deep
- Brand / Vendor: BEA
- Hardware Model / MPN: 10LZR-H100KIT-19327
- Deal Status: ⚡ Special Deal (17% OFF)
- Condition: 100% Brand New, Factory-Sealed Commercial Gear
- Category: Access Control
- Fulfillment Origin: Dispatches from Texas & Florida distribution hubs
- Binational Availability: Commercial procurement ready for USA and Mexico
- Laser Technology.
- Detection mode: Movement and presence.
- Detection range: 9.6 x 9.6 m.
- Operating voltage: 12 to 24 VDC.
- Maximum consumption 5 W.
- Maximum current 1.8 A.
- Time of Flight technology.
- NEMA 4 protection rating.
- Activation and safety signals.
Applications - Vehicle barriers, swing or sliding gates and rolling shutters
What does the kit contain?
- Sensor 10-LZR-H100, laser sensor.
- Remote control for configuration model 10-REMOTE
What do I need to quote?
- Mounting bracket for barrier or pedestal (Not included). Facilitates installation. Model 10-LBA
- 12 VDC, 1 A regulated power supply for equipment power (Not included). Recommended model: PL-DC-1000 or equivalent.
Optional accessory to quote
- Pedestal-type bollard to mount the 10-LZRH100 sensor (Not included). Model 10-BOLLARD-BLK
The BEA 10-LZR-H100 sensor is a sensor based on laser Time of Flight technology. It is designed for applications in doors, gates and vehicle barriers.
This solution provides 4 laser curtains, which offer a three-dimensional detection zone for precise object detection. These laser curtains are highly configurable and can be adjusted for opening, safety and presence detection functions in vehicle sensing applications.
The 10-LZR-H100 is a safe and highly competitive alternative for places where it is not possible to install magnetic loops, due to restrictions applied by the end user or inconveniences that limit the installation area.
The sensor is encapsulated in a NEMA 4 cabinet, ensuring excellent performance in outdoor applications.
